Turbocharger, Gen2 GTX3071R DBB with RB25DET T3 6 bolt exit turbine hsg w/ 1 bar int wgt. actuator GRT-TBO-J22

Price
$2,363.73
Optional Selection::None
Product Description:

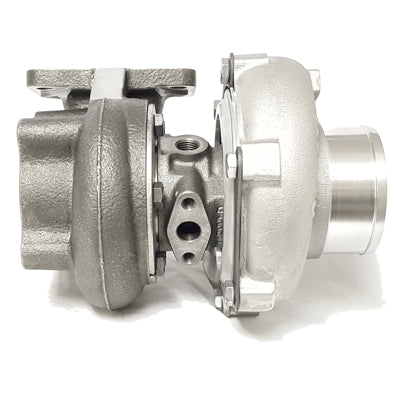

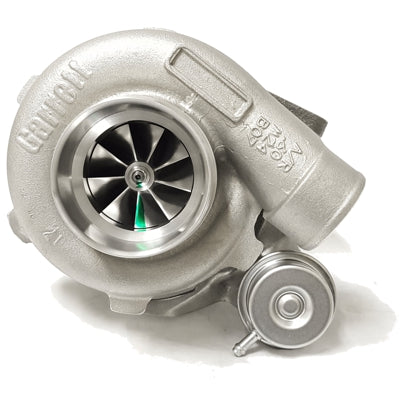

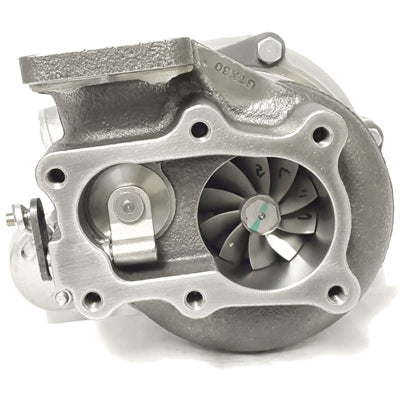

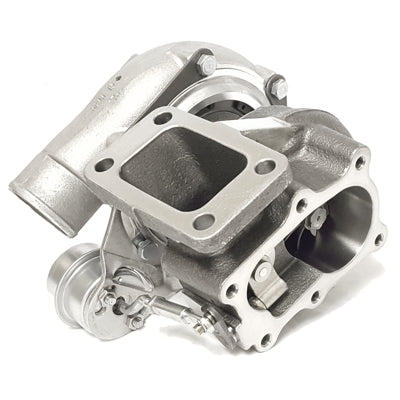

    Garrett GEN2 GTX3071R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 Bar internal wastegate actuator. Advanced GEN2 billet compressor wheel capable of 650HP!
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

NOTE: Alternate coolant and oil fittings and flanges, sold separately, are needed to connect the GT/GTX turbo.

COMPRESSOR & TURBINE MAPS:
