Turbocharger, Garrett G30-770, STANDARD ROTATION, 0.82 A/R, T3 Undivided (open), T31 (Narrow) 4 bolt GRT-TBO-N50

Price
$2,642.37

Product Description:

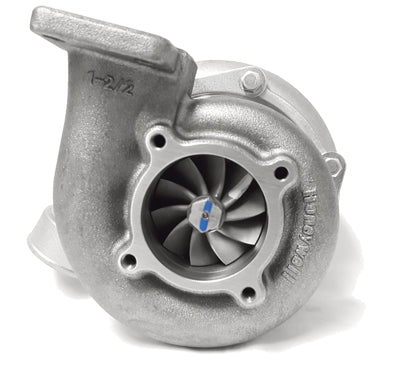

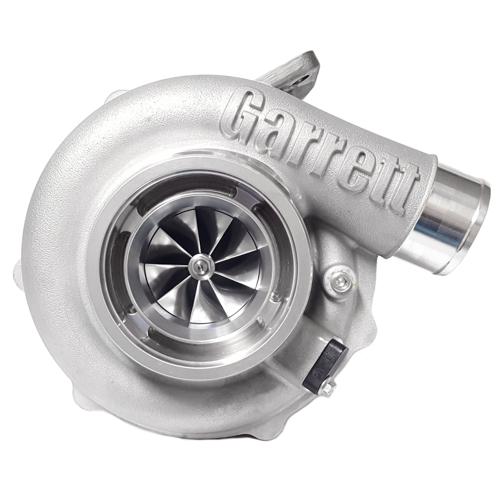

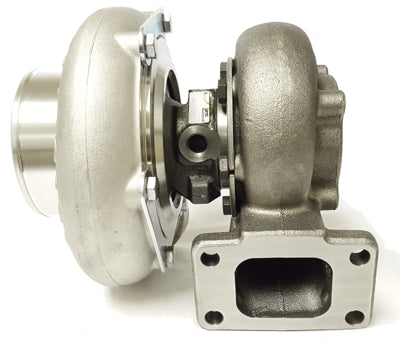

Garrett® G30-770 standard rotation turbocharger with 4" inlet and 2" outlet compressor housing and 0.82 A/R T3 undivided (open), T31 4 bolt (narrow) outlet turbine housing.


Product Features:

  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
Product Specifications:
  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

Installation Hardware:

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • 4 Bolt Outlet Flange (for Downpipe): FLS-084
  • 4 Bolt Outlet Gasket: GSK-012
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

  • Compressor & Turbine Maps:





    Shipping Information

    Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

    **ALL TURBO KITS ARE BUILT TO ORDER** 4-6 WEEK LEAD TIME.

    **ALL FUEL KITS ARE BUILT TO ORDER** 2-3 WEEK LEAD TIME
