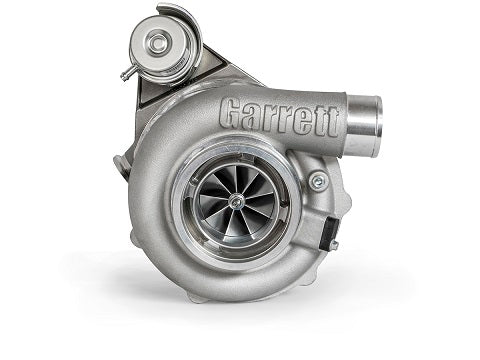

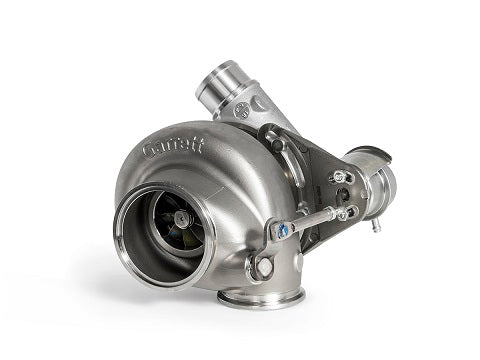

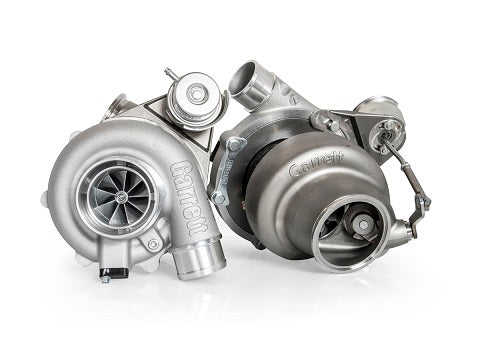

Turbo, Garrett G30-660, STANDARD ROTATION, 1.01 A/R INTERNAL W/G, V-Band In/Out, P/N 880704-5003S GRT-TBO-N91

Price
$2,797.80

Product Description:

Garrett® G30-660 standard turbo assembly kit with 3" inlet and 2" outlet compressor housing and 1.01 A/R O/V, v-band in/out INTERNALLY WASTEGATED turbine housing.



Product Features:

  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
  • Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 67mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.70
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN
  • Includes Turbine Housing Inlet & Outlet V-Band Clamps

INSTALLATION HARDWARE:

  • Inlet V-Band Flange (For Turbo Manifold): FLS-350
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

  •

    Compressor & Turbine Maps:

    Shipping Information

    Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

    **ALL TURBO KITS ARE BUILT TO ORDER** 4-6 WEEK LEAD TIME.

    **ALL FUEL KITS ARE BUILT TO ORDER** 2-3 WEEK LEAD TIME
