Turbo Assembly Kit, G42-1200C, T4 Divided 1.28 A/R, Compact CHS, Garrett P/N 879779-5006S GRT-TBO-J99

Price
$3,827.46

Product Description:

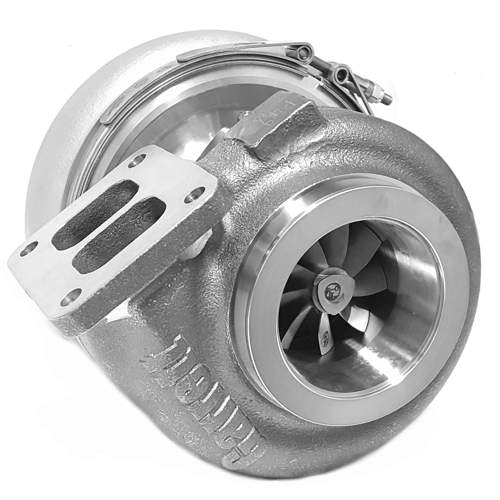

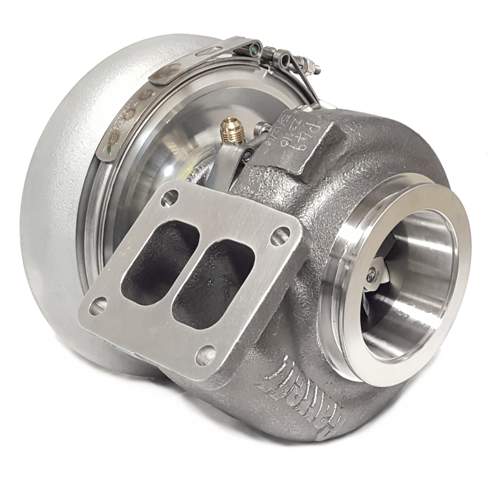

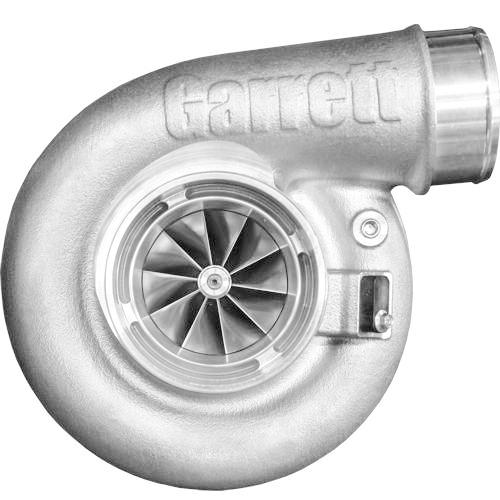

Garrett® G42-1200 compact turbo assembly kit with 1.28 A/R T4 divided turbine housing. Capable of 1200HP!

Product Features:

  • Quick spooling, high horsepower solution for 2.0 liter up to 7.0 liter engine platforms
  • Ten blade, forged, fully-machined G Series compressor wheel with high flowing aero
  • Low inertia compressor wheel resulting in faster boost response
  • New turbine aero wheel flows 10% more and has peak efficiency of 77% (Compared to GTX42 at 74% with 1.01A/R)
  • Engineered with inconel super alloy to withstand operating temperatures up to 950C

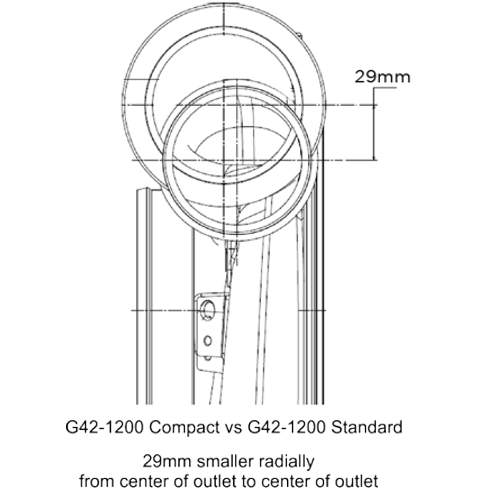

  • Compact option is 4mm shorter axially and 29mm smaller radially than the standard G42

Product Specifications:

  • Compressor Wheel Inducer: 73mm
  • Compressor Wheel Exducer: 91mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.90 w/ 4" inlet and 3" outlet hose connections
  • Turbine Wheel Inducer: 82mm
  • Turbine Wheel Exducer: 75mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Coolant - Water Options (Requires 2 units): *Please call for assistance*
  • Oil feed flange (-4 AN with built-in Restrictor): FLA-040
  • Oil feed gasket: GSK-011
  • Oil drain flange: FLA-009
  • Oil drain gasket: GSK-007

  • T4 Turbine Inlet Flange, Divided, Stainless: FLS-057 (Mild steel option)
  • Gasket, T4 (T04) Turbine Inlet - DIVIDED: GSK-014
  • V-Band Outlet Flange (for Downpipe): FLS-378
  • V-Band Outlet Clamp: CLA-294
  •

    NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:



    Shipping Information

    Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

    **ALL TURBO KITS ARE BUILT TO ORDER** 4-6 WEEK LEAD TIME.

    **ALL FUEL KITS ARE BUILT TO ORDER** 2-3 WEEK LEAD TIME
