Price
$3,827.46

Product Description:

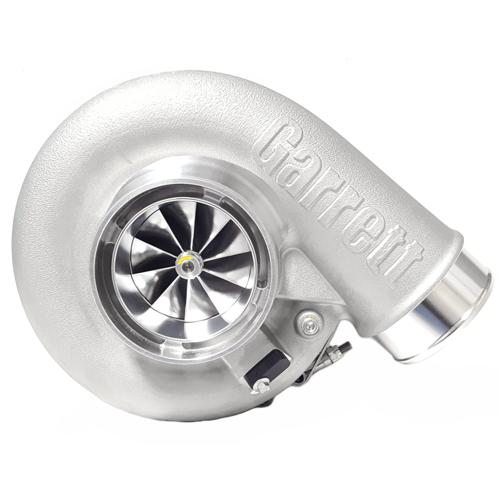

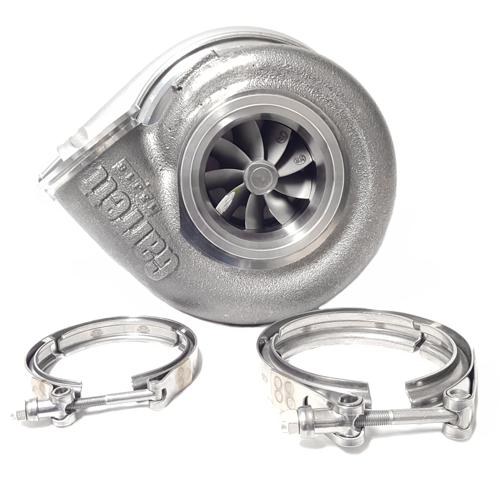

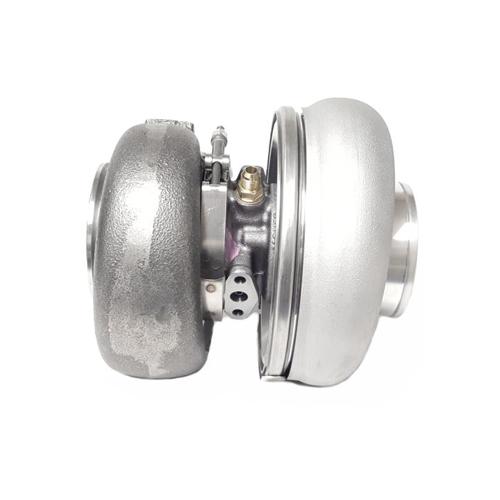

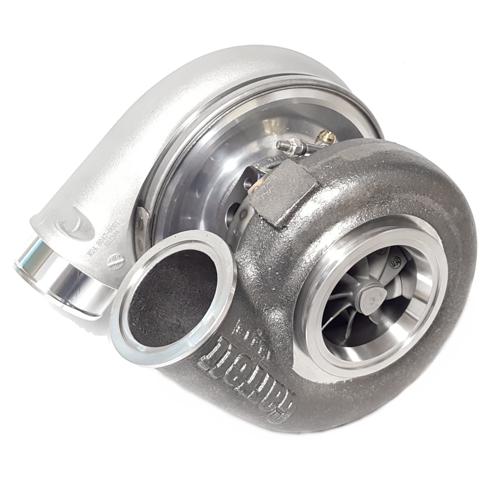

Garrett® G42-1200 compact turbo assembly kit with 1.01 A/R v-band inlet/outlet turbine housing. Capable of 1200HP!

Product Features:

  • Quick spooling, high horsepower solution for 2.0 liter up to 7.0 liter engine platforms
  • Ten blade, forged, fully-machined G Series compressor wheel with high flowing aero
  • Low inertia compressor wheel resulting in faster boost response
  • New turbine aero wheel flows 10% more and has peak efficiency of 77% (Compared to GTX42 at 74% with 1.01A/R)
  • Engineered with inconel super alloy to withstand operating temperatures up to 950C
  • Compact option is 4mm shorter axially and 29mm smaller radially than the standard G42
Product Specifications:
  • Compressor Wheel Inducer: 73mm
  • Compressor Wheel Exducer: 91mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.90 w/ 4" inlet and 3" outlet hose connections
  • Turbine Wheel Inducer: 82mm
  • Turbine Wheel Exducer: 75mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Coolant - Water Options (Requires 2 units): *Please call for assistance*
  • Oil feed flange (-4 AN with built-in Restrictor): FLA-040
  • Oil feed gasket: GSK-011
  • Oil drain flange: FLA-009
  • Oil drain gasket: GSK-007

  • V-Band Inlet Flange (for Turbo Manifold): FLS-379
  • V-Band Inlet Clamp: CLA-291
  • V-Band Outlet Flange (for Downpipe): FLS-380
  • V-Band Outlet Clamp: CLA-292


    • NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:
