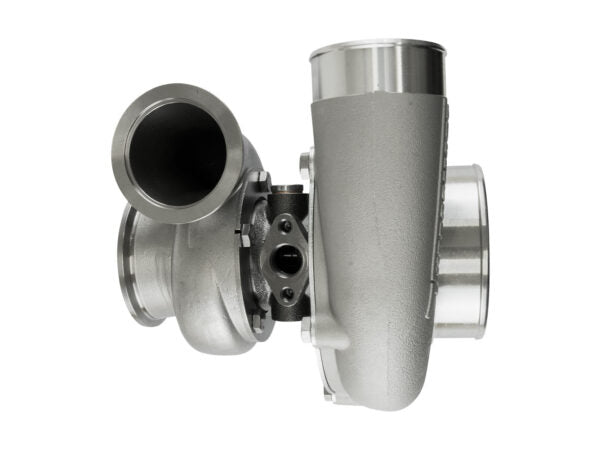

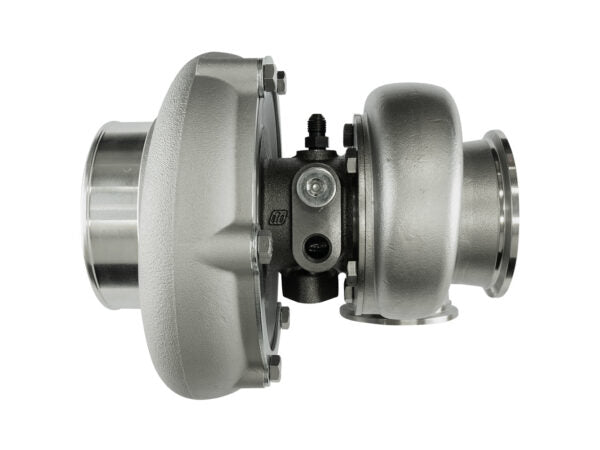

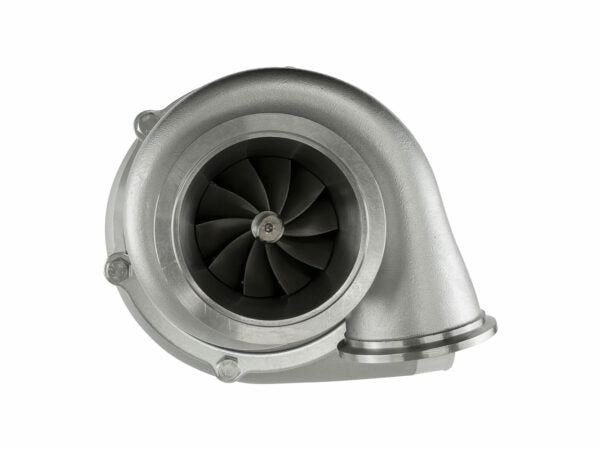

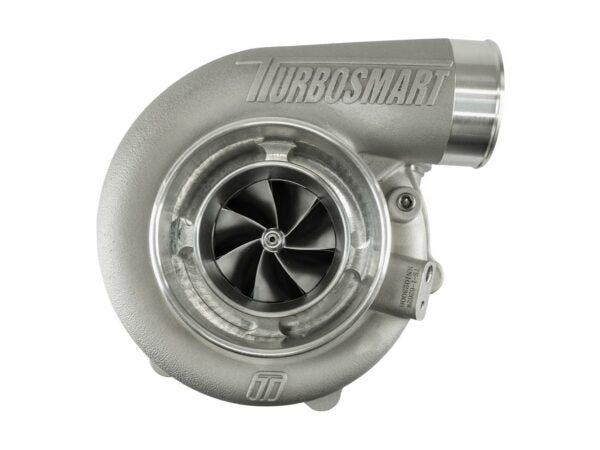

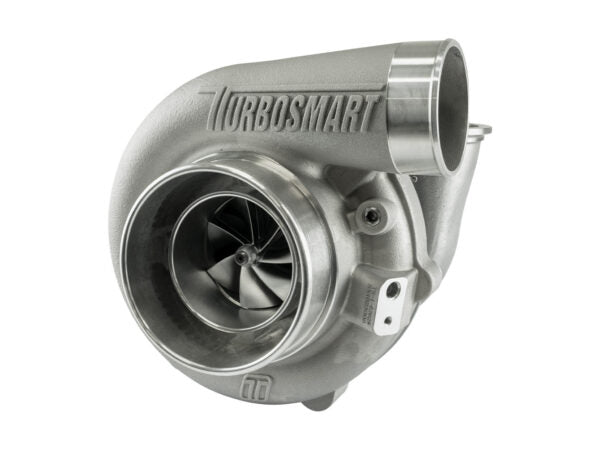

TS-2 Performance Turbocharger (Water Cooled) 7170 V-Band 0.96AR Externally Wastegated

Price
$2,549.95

Smaller, Lighter & Faster – The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.

The TS-2 series are water and oil cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines – While being smaller, lighter and faster in response than other solutions on the market.

Available In
TS-1 oil cooled turbochargers
TS-2 oil and water cooled turbochargers
V-Band, various T3 Flange and T4 Flange options
Reverse Rotation (select sizes)
Various AR’s options
Internal and External wastegate options available

Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal AR’s and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 71mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 70mm
Turbine AR: 0.96
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs

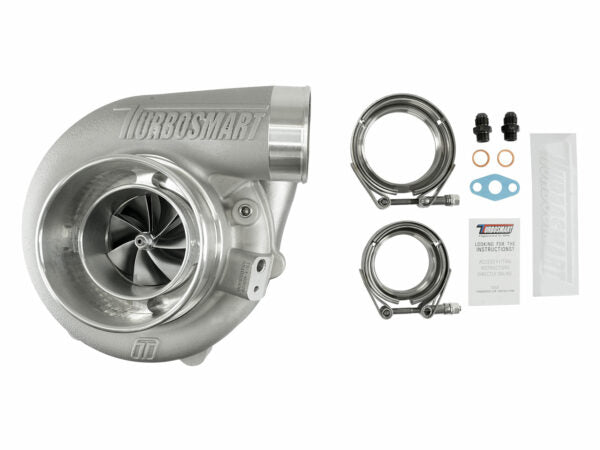

SUPPLIED WITH
1 x Turbosmart Performance Turbocharger
2 x Weld Flanges (Turbine inlet & outlet)
2 x V-Band Clamps (Turbine inlet & outlet)
Water Feed Fitting kit 1 x Oil drain gasket

Shipping Information

Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

**ALL TURBO KITS ARE BUILT TO ORDER** 4-6 WEEK LEAD TIME.

**ALL FUEL KITS ARE BUILT TO ORDER** 2-3 WEEK LEAD TIME
