PRODUCT DESCRIPTION:

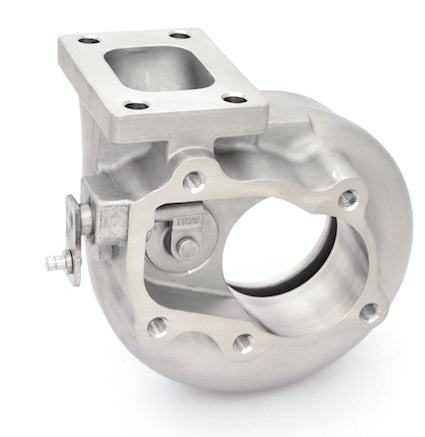

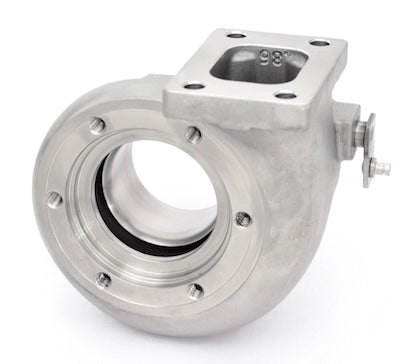

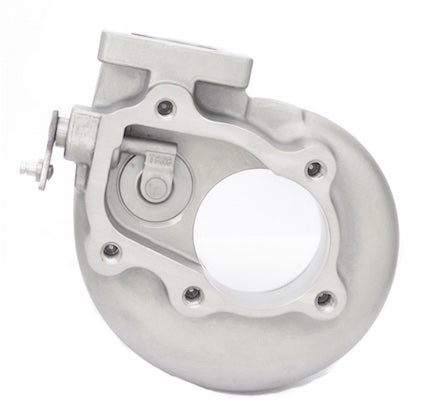

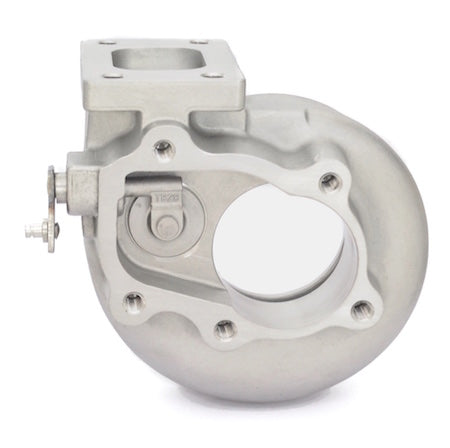

Stainless Steel, T25 inlet, internally gated, 5 bolt outlet, and .86 A/R turbine housing for Garrett GTX30 series and Garrett GT30 series (standard 60mm inducer / 55mm exducer turbine wheel) turbochargers.

The perfect upgrade solution for existing T25 inlet Garrett GT28/GTX28 series turbo setups to a Garrett GT30/GTX30 series turbo without replacing the manifold!

.64 A/R version available as  ATP-HSG-364.

PRODUCT SPECIFICATIONS:
  • T25 inlet flange
  • Internally gated
  • 5 bolt GT28 style outlet
  • .86 A/R
  • Stainless Steel material

    • COMPATIBLE GARRETT TURBOCHARGERS:
  • GTX3067R
  • GT3071R, GTX3071R, GEN2 GTX3071R
  • GT3076R, GTX3076R, GEN2 GTX3076R
  • GT3082R

    • INSTALLATION COMPONENTS:
  • T25 Inlet Gasket: GRT-GSK-004
  • T25 Inlet Flange (For Manifold): ATP-FLS-037
  • Turbine Housing to CHRA Mount Kit:  ATP-FST-039
  • Outlet 5 Bolt Gasket:  ATP-GSK-016
  • Outlet 5 Bolt Flange (For Down-pipe): ATP-FLS-088
  • Outlet 5 Bolt to 3" V-Band Adapter:  ATP-FLS-023B
  • Outlet Fasteners: (Studs) and (Lock Nuts)
