Multiple types of fuel hose for body mounted fillers.
Internal hose diameters are 1.5" making it ideal for many applications. For universal applications, these filler hoses are 36" (0.9m) long that can be cut to length.

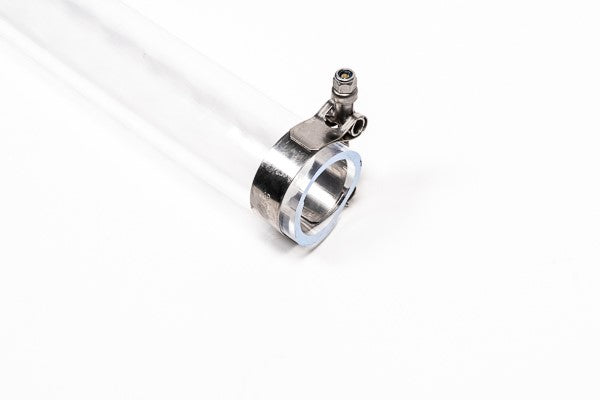

All filler hoses include two 304 Stainless Steel T-Bolt clamps (shown above) that feature a protective smooth inside and permits a 360 degree seal.

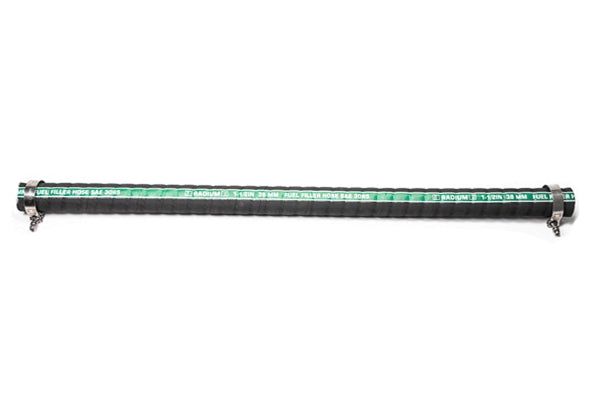

20-0597 Fuel Fill Neck Hose Kit, 1.5in
This hose is convoluted permitting tight bends, as depicted below. The helical wires resist hose kinking.
It is compatible with all fuel types and has a long life span.
20-0597 HOSE SPECIFICATIONS
Inner Diameter: 1.5" (38mm)
Wall Thickness: 0.176" (4.47mm)
Length: 3 feet (914mm)
Working Pressure: 20-psi maximum
Burst Pressure: 90-psi mimimum
Bend Radius: 5" minimum
Tube Construction: Nitrile
Reinforcement: Synthetic Fabric
Flex: Two Embedded Helical Wires
Cover: Neoprene Coated Fabric
Temperature Range: -40F to 212F
Standards: SAE 30R5
Made in USA
20-0602 Fuel Fill Neck Hose Kit, 1.5in, Clear
This fill hose is perfect for applications that need a visualization of the fuel dynamically filling. Depending on the fuel type used, the clear hose may become cloudy and translucent overtime. Unlike the black reinforced filler hose, this clear hose should be inspected occasionally and replaced if needed.
20-0602 HOSE SPECIFICATIONS
Inside Diameter: 1.5" (38mm) ID
Wall Thickness: 0.2" (5mm)
Length: 3 feet (914mm)
Max Pressure: 20-psi @ 72F
Bend Radius: 8" minimum
Temperature: -20F to 160F
Durometer: 60A
