Product Description
The GenV Motorsport Range takes the GenV modular range of External Wastegates and incorporates a CFD Designed & Real World Validated Heatsink between the wastegate body and the actuator. While all GenV Wastegates including a Ceramic isolator between the body and the actuaot to ensure the least possible heat transfer occurs (for maximum life), The Motorsport version takes this further by putting more distance between the two, while also using both convection within the engine compartment and physical shielding to elimintate harmful levels of hear from ever reaching the actuator. This also aids in valve & guide cooling which further extends service life in demanding environments. The Motorsport Version is without doubt the most suitable for the extreme conditions associated with endurance styles of motorsport!

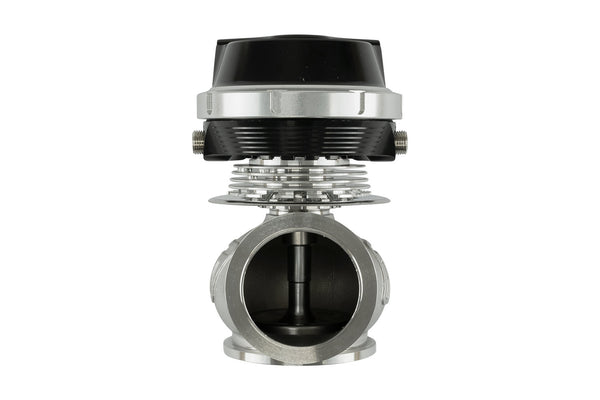

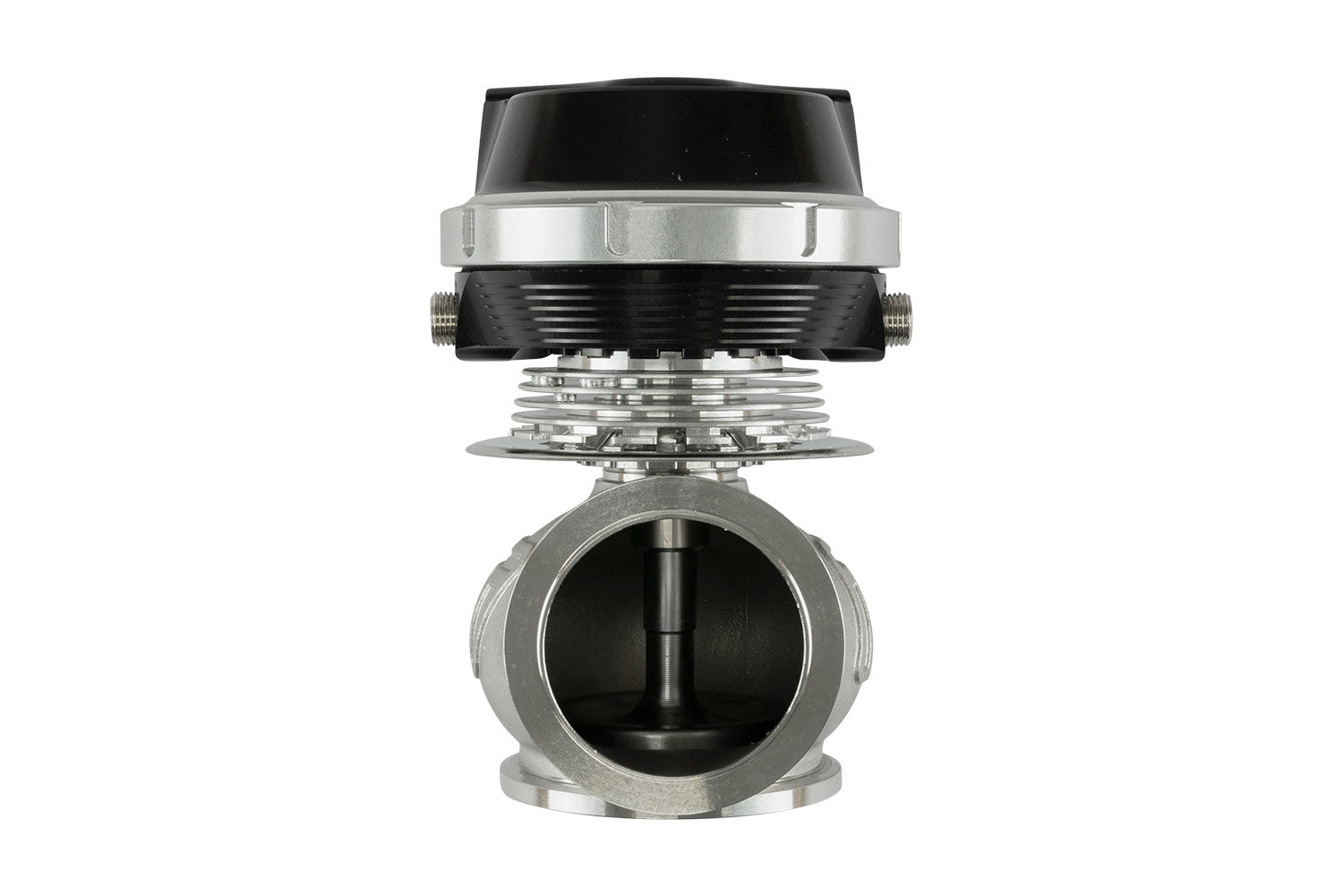

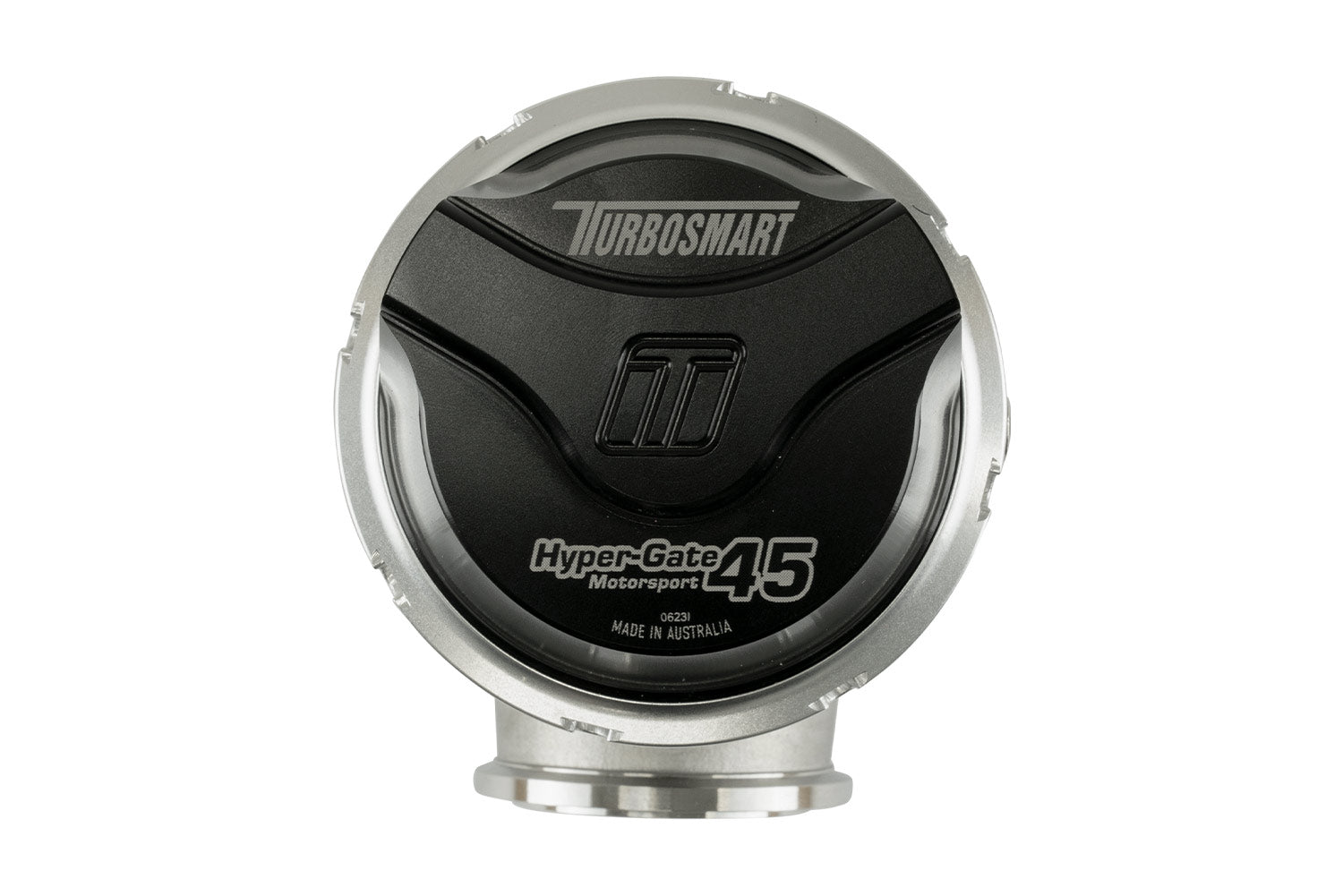

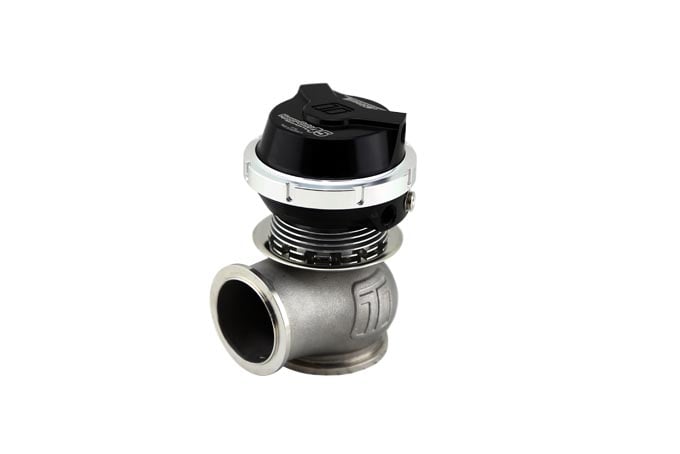

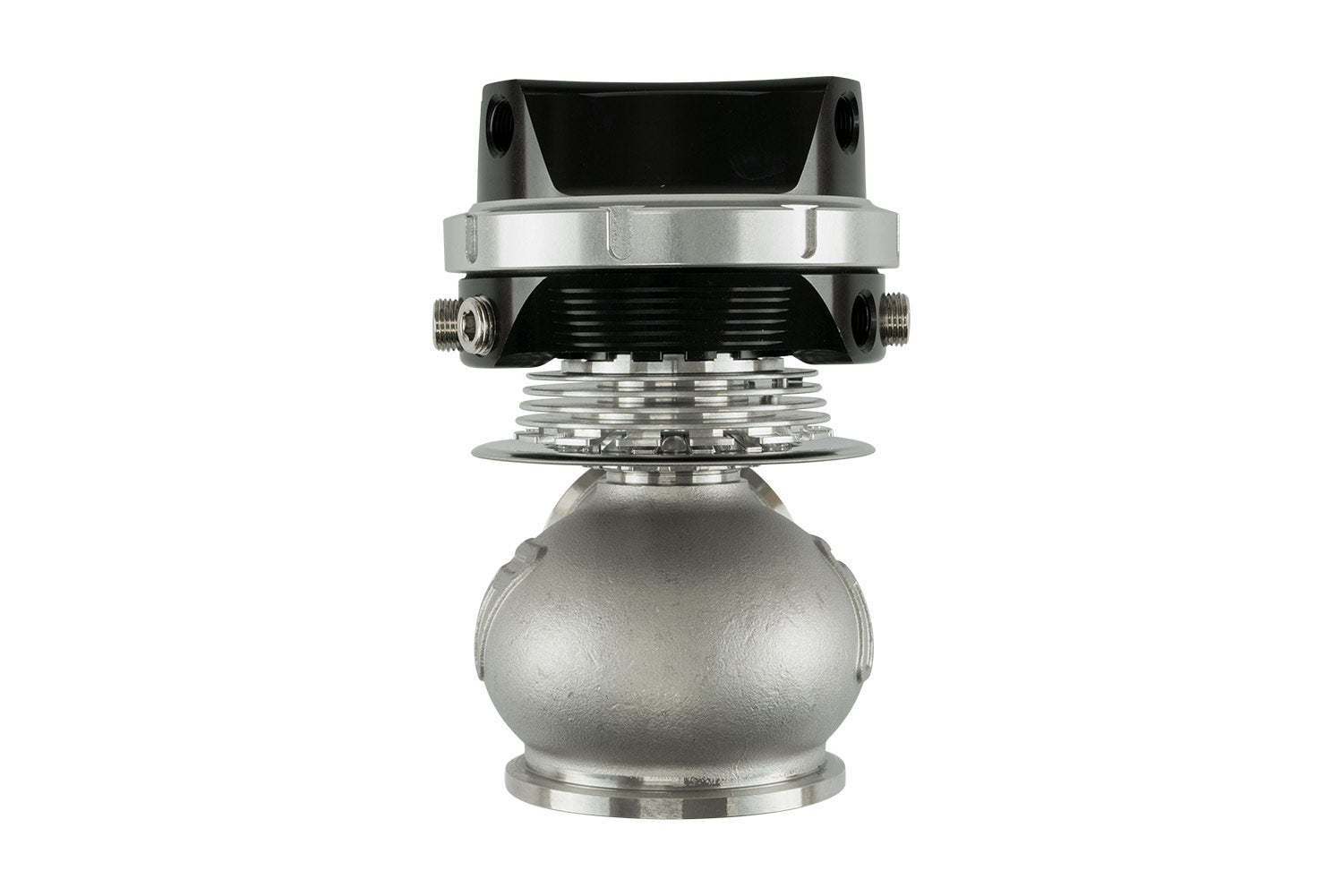

The GenV WG45 HyperGate45 Motorsport External Wastegate is a cost-effective 45mm external wastegate designed with Extreme Temperatures and huge thermal demands in mind. Based on the modular architecture of the GenV range, the Motorsport version has an extra CFD-driven heatsink built-in proven to dissipate more heat and further isolate the actuator housing from thermal stress. The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Features
CFD Driven heatsink design
Class Leading Thermal Performance
Class Leading CFD and Bench-Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Actuator Cooling
Optional Position Sensor Available Separately
Rotatable / Clock-able Actuator Housing
45mm V-Band Fitment
Nitronic 60 Valve Guide and High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps

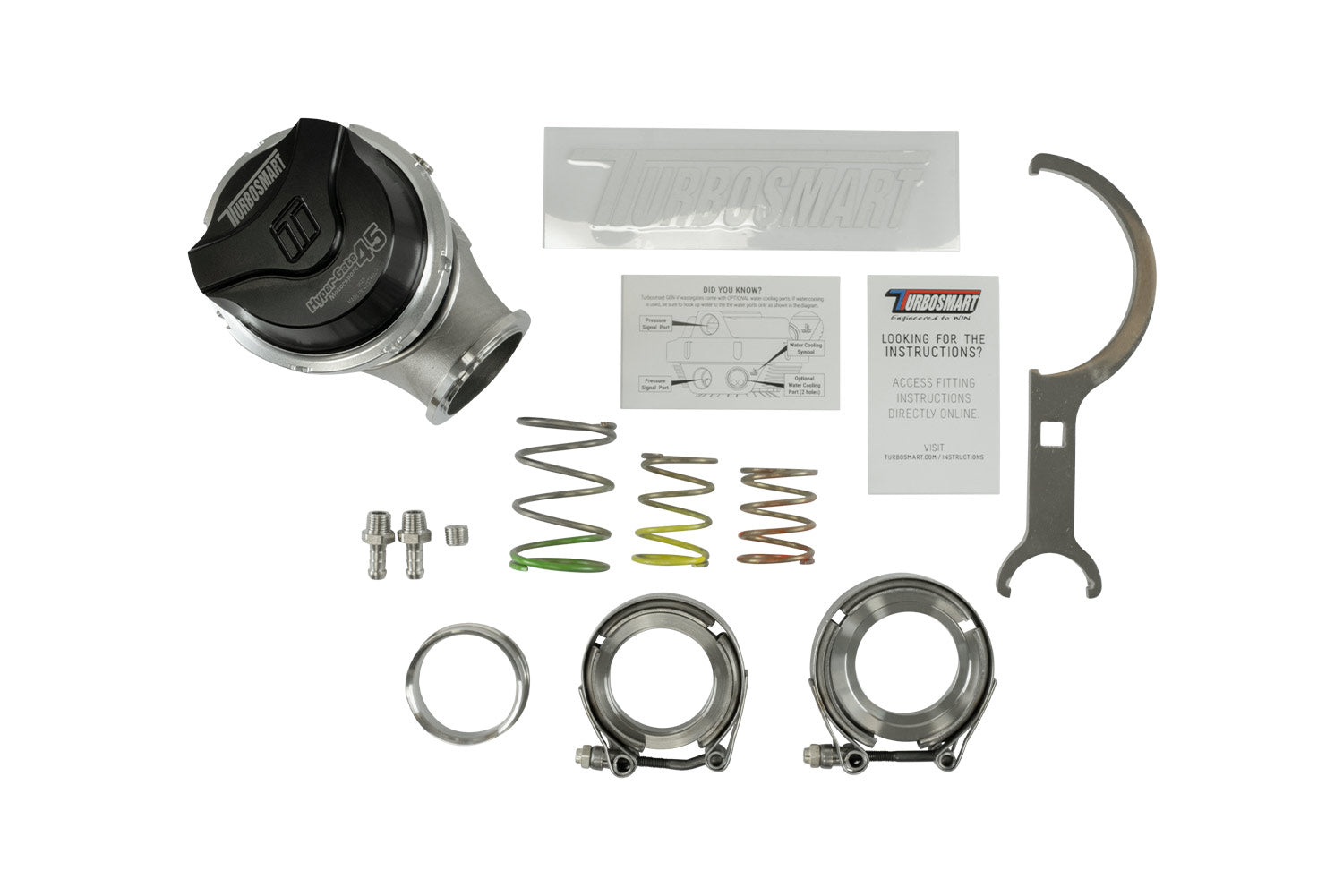

What's in the box? Supplied with:
GenV Wastegate unit
All Springs Included
3.5.7.14psi (1 Inst. As per Description)
Locking Collar Tool

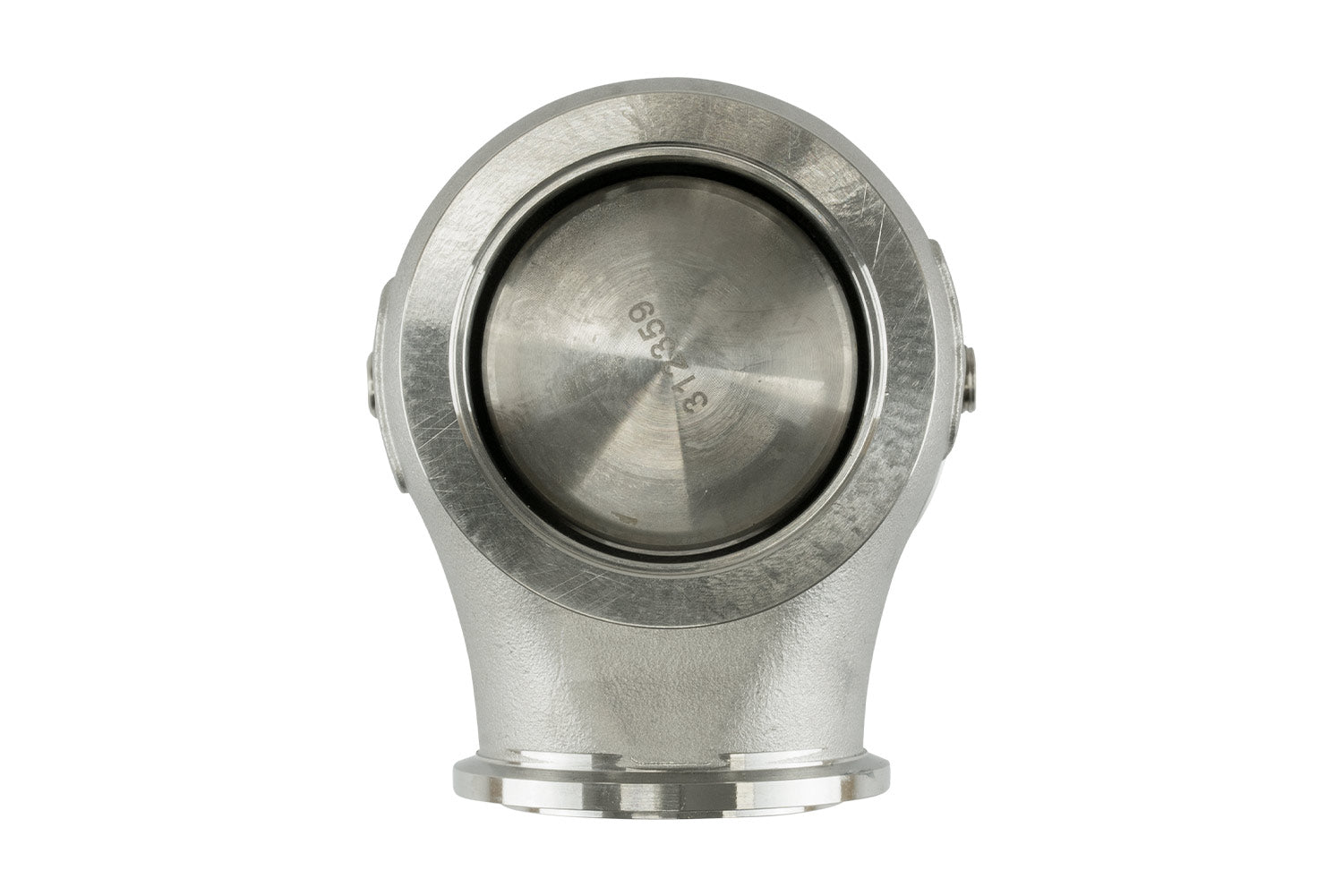

GenV SS316 Valve seat
Strap Type V-Bands
Inlet and Outlet Weld Flanges
Hose Tail and Blank Fitting Kit
Turbosmart Decal
