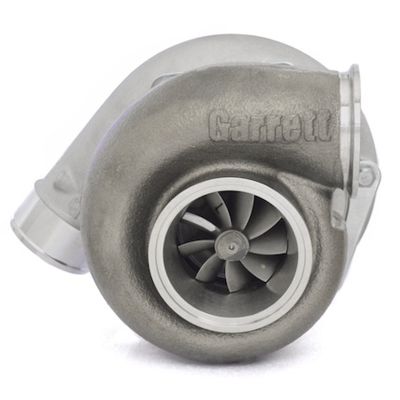

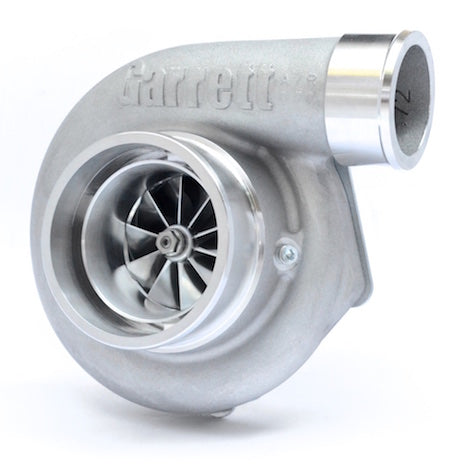

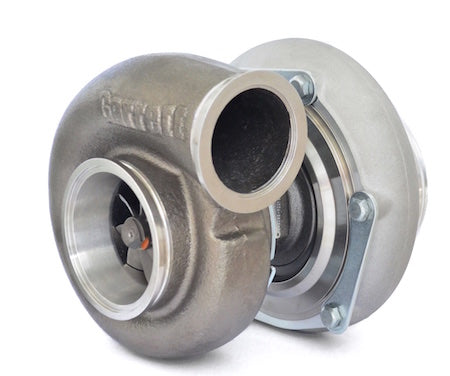

Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.21 A/R, Comp Hose Connection GRT-TBO-B98
Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.21 A/R, Comp Hose Connection GRT-TBO-B98
Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.21 A/R, Comp Hose Connection GRT-TBO-B98
Click image to open expanded view
Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.21 A/R, Comp Hose Connection GRT-TBO-B98
Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.21 A/R, Comp Hose Connection GRT-TBO-B98
Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.21 A/R, Comp Hose Connection GRT-TBO-B98

Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.21 A/R, Comp Hose Connection GRT-TBO-B98

Price
$3,134.16
Product Description:
    Gen2 GTX3584RS with a Garrett turbine v-band housing, 1.21 A/R. Configured with a compressor outlet hose connection.
    • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
    • Ultra high flow "RS" blade profile turbine wheel
    • Dual ball bearing CHRA rotating assembly
    • Compact package capable of 1,000 HP
Product Specifications:
  • Compressor Wheel Inducer: 67 mm
  • Compressor Wheel Exducer: 84 mm
  • Compressor Wheel Trim: 64
  • Compressor Housing: T04S Frame with a 4" inlet and 2.5" outlet w/ Anti-Surge
  • Turbine Wheel Inducer: 68 mm
  • Turbine Wheel Exducer: 62 mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: 1.21 A/R with v-band Inlet/Outlet

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008

  • V-Band Inlet Clamp: CLA-047
  • 3 Inch GT V-Band Clamp: CLA-048
  • GT 3" V-Band Outlet Flange (for Downpipe): FLS-246
  • V-Band Inlet Flange (for Turbo Manifold): FLS-191

    • NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:



    ​Order Cancellation:

    Orders can be cancelled for a 5% fee up to 48 hours after the order has been placed. After 48 hours, order cancellations will be subject to a 40% restocking fee.

    We reserve the right to cancel orders at our discretion if we suspect the order is fraudulent. We will attempt to contact you before cancelling.
    Shipping Information

    Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

    **ALL TURBO KITS ARE BUILT TO ORDER** 4-6 WEEK LEAD TIME.

    **ALL FUEL KITS ARE BUILT TO ORDER** 2-3 WEEK LEAD TIME
