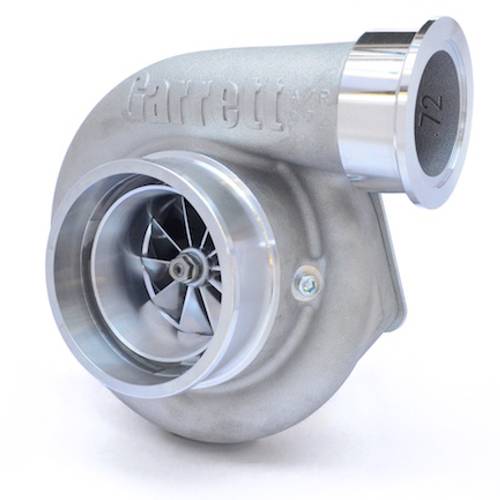

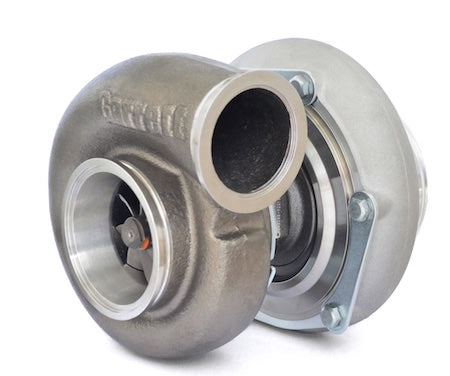

Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.01 A/R, Comp V-band Connection GRT-TBO-C11

Price
$3,134.16

Product Description:

Gen2 GTX3584RS with a Garrett turbine v-band housing, 1.01 A/R. Configured with a v-band compressor outlet connection.

    • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
    • Ultra high flow "RS" blade profile turbine wheel
    • Dual ball bearing CHRA rotating assembly
    • Compact package capable of 1,000 HP
Product Specifications:
  • Compressor Wheel Inducer: 67 mm
  • Compressor Wheel Exducer: 84 mm
  • Compressor Wheel Trim: 64
  • Compressor Housing: T04S Frame with a 4" inlet and 2.5" v-band outlet w/ Anti-Surge
  • Turbine Wheel Inducer: 68 mm
  • Turbine Wheel Exducer: 62 mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: 1.01 A/R with v-band Inlet/Outlet

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008

  • V-Band Inlet ClampCLA-047
  • 3 Inch GT V-Band ClampCLA-048
  • GT 3" V-Band Outlet Flange (for Downpipe): FLS-246
  • V-Band Inlet Flange (for Turbo Manifold): FLS-191
  • Compressor Housing Outlet V-Band Flange (Charge Pipe Side): FLS-240
  • Compressor Housing Outlet V-Band Clamp: CLA-053

  • NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:
