Price
$2,415.34
Optional Selection::None

Product Description:

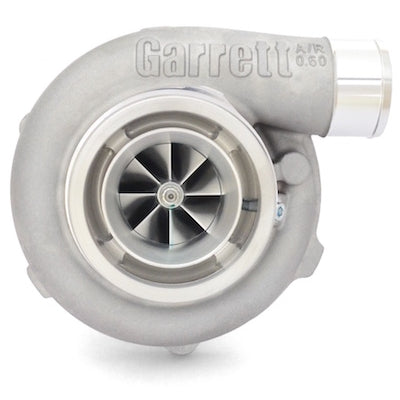

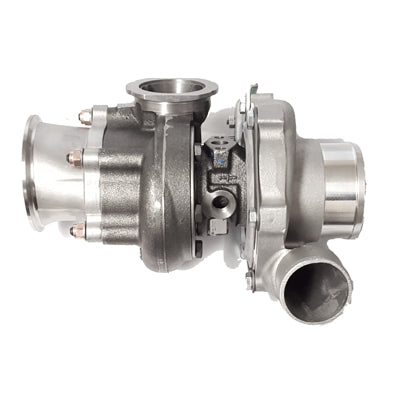

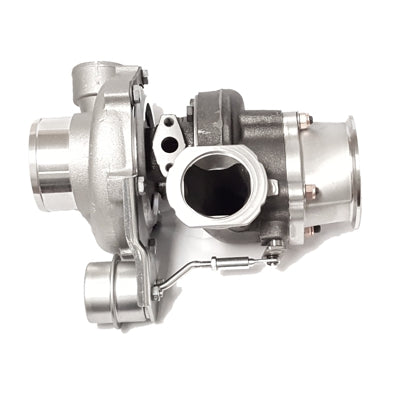

Garrett GEN2 GTX3076R anti-surge 4" inlet and 2" outlet T04E frame dual ball bearing turbocharger with .86 A/R VB25 internally gated (1 bar actuator) "GT28 style" 5 bolt into 3" v-band turbine housing.

Advanced GEN2 billet compressor wheel capable of 750HP!

Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 58 mm
  • Compressor Wheel Exducer: 76 mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60 mm
  • Turbine Wheel Exducer: 55 mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

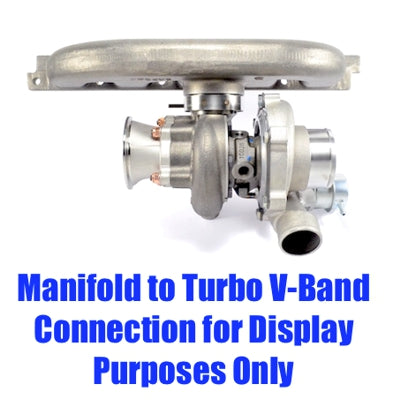

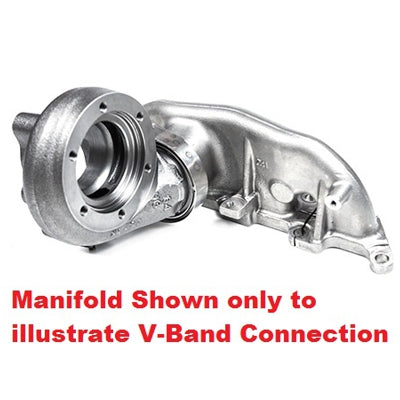

  • V-Band Inlet Flange (for Turbo Manifold): FLS-093
  • V-Band Inlet Clamp: CLA-025
  • 3" Stainless V-Band Flange (for Downpipe): FLS-063
  • 3" Stainless V-Band Clamp: CLA-013

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
