GEN2 Garrett GTX3582R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-861
GEN2 Garrett GTX3582R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-861
GEN2 Garrett GTX3582R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-861
Click image to open expanded view
GEN2 Garrett GTX3582R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-861
GEN2 Garrett GTX3582R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-861
GEN2 Garrett GTX3582R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-861

GEN2 Garrett GTX3582R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-861

Price
$2,903.01
Optional Selection::None

PRODUCT DESCRIPTION:

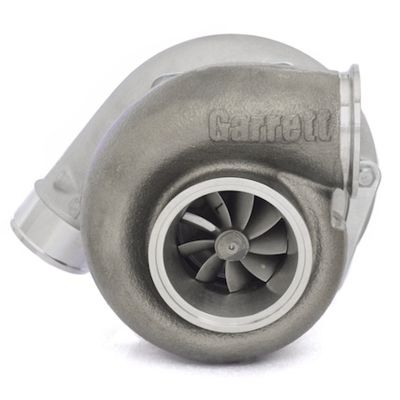

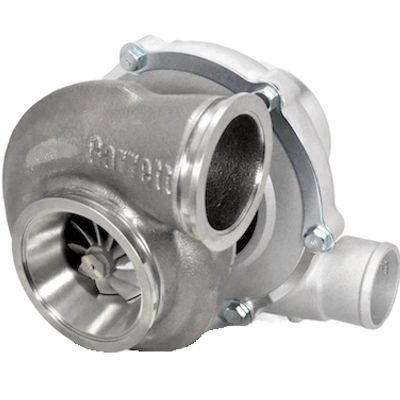

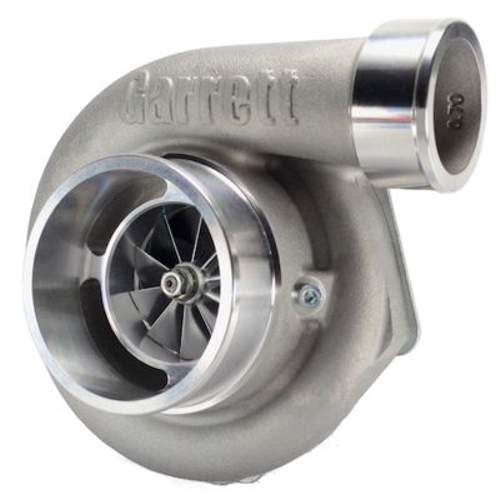

Garrett GEN2 GTX3582R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 850HP!

The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.


PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 66mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.70, T04S Frame: 4" in / 2.5" out
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84


    • TURBINE HOUSING OPTIONS:
  • Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R

    •

    ALTERNATIVE TURBINE HOUSING OPTIONS:

    • T4 Inlet and 3.0" GT V-Band Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-046
    • T4 Divided Inlet and 3.0" V-Band Outlet. Available in 1.06 A/R Product Code: ATP-HSG-063
    • T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-037
    • T3 Divided Inlet and 3.0" V-Band Outlet. Available in .82 A/R, 1.06 A/R
    • TiAL Stainless Steel V-Band Inlet & Outlet. Available in .63 A/R, .82 A/R, 1.03 A/R

    INSTALLATION HARDWARE:



  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031


    • APPLICATION NOTES:
    * Compatible turbine housing inlet flange (product code: FLS-191)
    * Compatible turbine housing outlet flange - select 81mm centering ring (product code: FLS-105)
    * Compatible turbine housing inlet clamp (product code: CLA-047)
    * Compatible turbine housing outlet clamp (product code: CLA-048)

    NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
