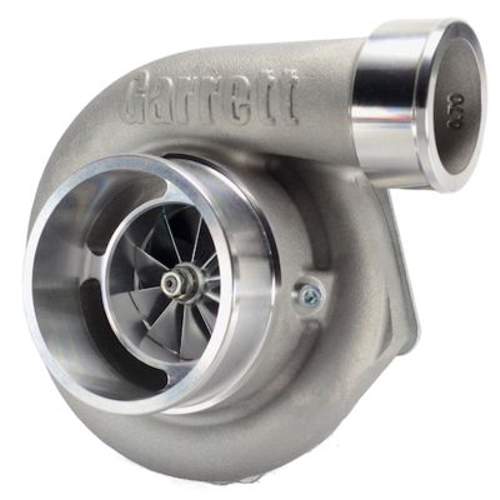

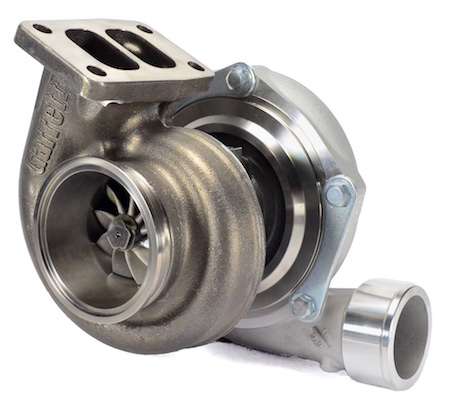

GEN2 Garrett GTX3582R Turbo w/ DIVIDED .61 A/R T3 NiResist Turbine Housing w/3" GT VBAND Exit GRT-TBO-849

Price
$2,996.53

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3582R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 850HP!

The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.


PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 66mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.70, T04S Frame: 4" in / 2.5" out
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84


  • TURBINE HOUSING OPTIONS:
  • Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R
  •

    ALTERNATIVE TURBINE HOUSING OPTIONS:

    • T4 Inlet and 3.0" GT V-Band Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-046
    • T4 Divided Inlet and 3.0" V-Band Outlet. Available in 1.06 A/R Product Code: ATP-HSG-063
    • T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-037
    • T3 Divided Inlet and 3.0" V-Band Outlet. Available in .82 A/R, 1.06 A/R
    • TiAL Stainless Steel V-Band Inlet & Outlet. Available in .63 A/R, .82 A/R, 1.03 A/R

    INSTALLATION HARDWARE:



  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008

  • T3 Divided Inlet Flange (for Turbo Manifold): FLS-068
  • T3 Divided Inlet Gasket: GSK-015
  • V-band 3" GT Outlet Flange (for Downpipe): FLS-246
  • Matching V-Band Outlet Clamp: CLA-048


  • NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
