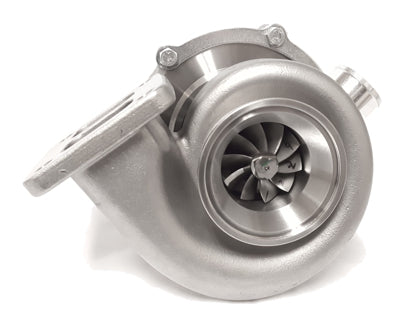

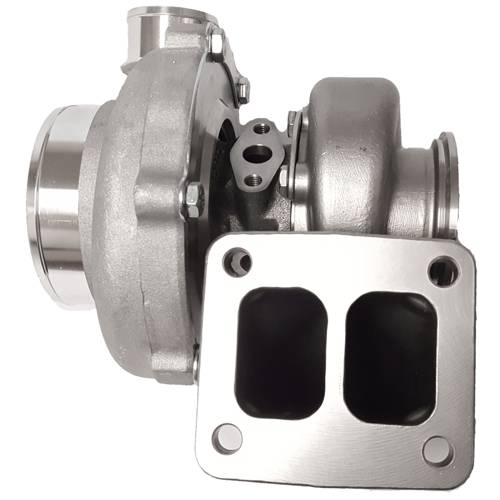

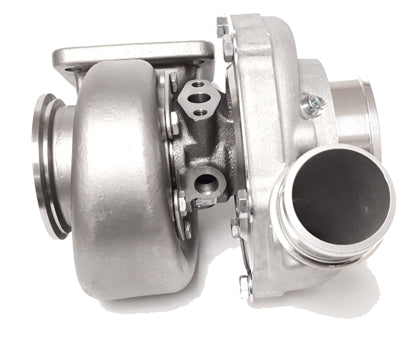

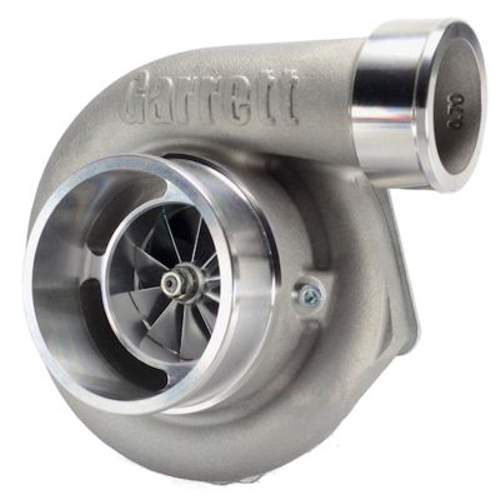

GEN2 Garrett GTX3582R Turbo w/ Divided 1.06 A/R T4 Turbine Housing w/3" VBAND Exit GRT-TBO-852
GEN2 Garrett GTX3582R Turbo w/ Divided 1.06 A/R T4 Turbine Housing w/3" VBAND Exit GRT-TBO-852
GEN2 Garrett GTX3582R Turbo w/ Divided 1.06 A/R T4 Turbine Housing w/3" VBAND Exit GRT-TBO-852
GEN2 Garrett GTX3582R Turbo w/ Divided 1.06 A/R T4 Turbine Housing w/3" VBAND Exit GRT-TBO-852
Click image to open expanded view
GEN2 Garrett GTX3582R Turbo w/ Divided 1.06 A/R T4 Turbine Housing w/3" VBAND Exit GRT-TBO-852
GEN2 Garrett GTX3582R Turbo w/ Divided 1.06 A/R T4 Turbine Housing w/3" VBAND Exit GRT-TBO-852
GEN2 Garrett GTX3582R Turbo w/ Divided 1.06 A/R T4 Turbine Housing w/3" VBAND Exit GRT-TBO-852
GEN2 Garrett GTX3582R Turbo w/ Divided 1.06 A/R T4 Turbine Housing w/3" VBAND Exit GRT-TBO-852

GEN2 Garrett GTX3582R Turbo w/ Divided 1.06 A/R T4 Turbine Housing w/3" VBAND Exit GRT-TBO-852

Price
$2,996.53
Optional Selection::None

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3582R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 850HP!

The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.


PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly



    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 66mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.70, T04S Frame: 4" in / 2.5" out
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: Divided 1.06 A/R T4 w/ 3" GT V-Band(81mm centering groove)

    • INSTALLATION HARDWARE:



  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008

  • T4 Divided Inlet Flange (for Turbo Manifold): FLS-057
  • T4 Divided Inlet Gasket: GSK-014
  • 3" GT V-Band Outlet Flange with 81mm centering groove (for Downpipe): FLS-246
  • Matching Downpipe V-Band Outlet Clamp: CLA-048

    • NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
