GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & .83 A/R Garrett DIVIDED VB Entry GRT-TBO-938
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & .83 A/R Garrett DIVIDED VB Entry GRT-TBO-938
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & .83 A/R Garrett DIVIDED VB Entry GRT-TBO-938
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & .83 A/R Garrett DIVIDED VB Entry GRT-TBO-938
Click image to open expanded view
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & .83 A/R Garrett DIVIDED VB Entry GRT-TBO-938
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & .83 A/R Garrett DIVIDED VB Entry GRT-TBO-938
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & .83 A/R Garrett DIVIDED VB Entry GRT-TBO-938
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & .83 A/R Garrett DIVIDED VB Entry GRT-TBO-938

GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & .83 A/R Garrett DIVIDED VB Entry GRT-TBO-938

Price
$2,996.53

PRODUCT DESCRIPTION:

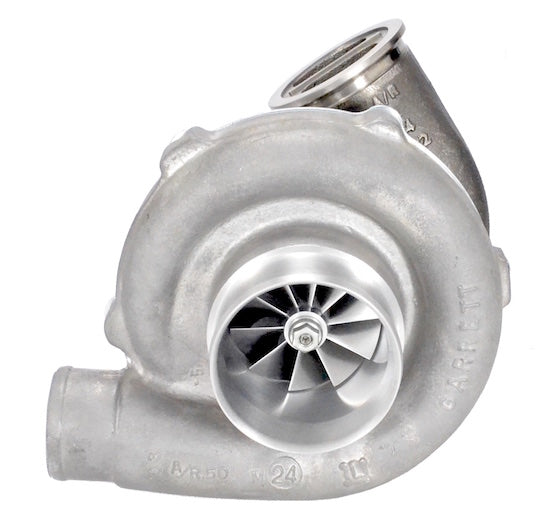

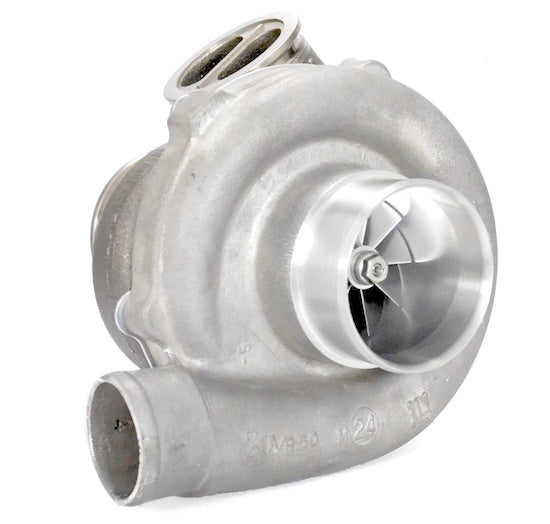

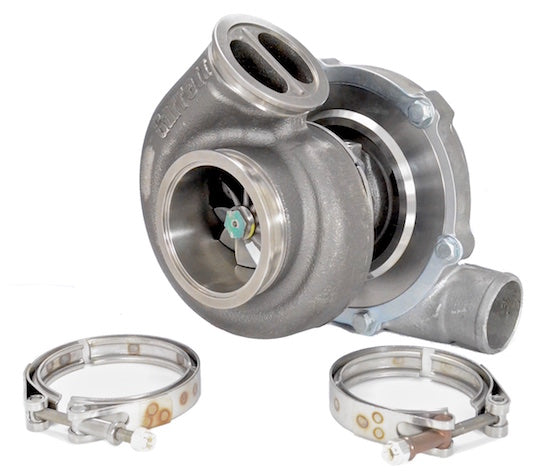

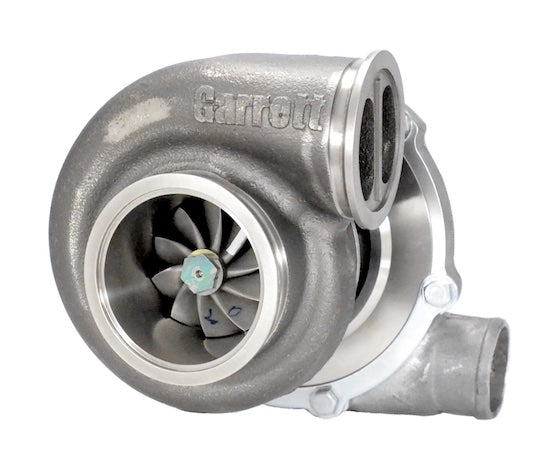

Garrett GEN2 GTX3582R dual ball bearing turbocharger with a compact T04E frame (3" inlet and 2" outlet compressor housing) and a 1.01 A/R Divided (Twin-scroll) V-Band Inlet and GT 3" V-Band outlet turbine housing (Ni-Resist Material). Advanced GEN2 billet compressor wheel capable of 850HP!

The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.

PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 66mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 64
  • Compressor Housing: Compact T04E Frame (3" Inlet & 2" Outlet)
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: 1.01 A/R Divided (Twin-Scroll) Inlet & GT 3" V-Band Outlet

    •

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • V-Band Inlet Clamp: (product code: CLA-047
  • V-Band Outlet Clamp: (product code: CLA-048
  • GT 3" V-Band Outlet Flange (for Downpipe): FLS-246
  • Divided V-Band Inlet Flange (for Turbo Manifold): HSG-250

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
