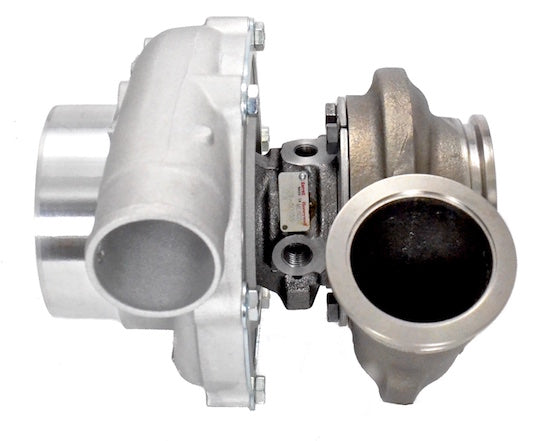

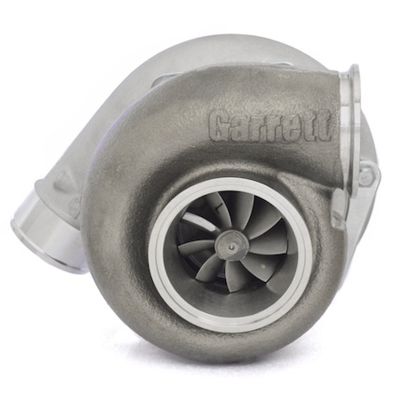

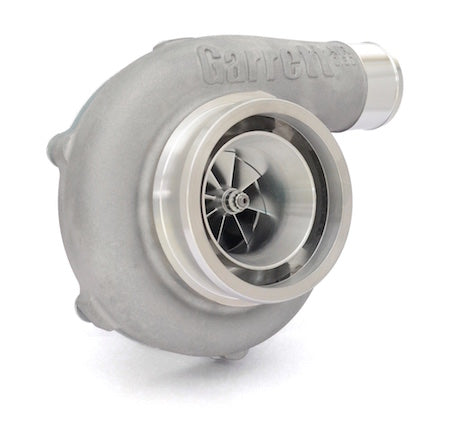

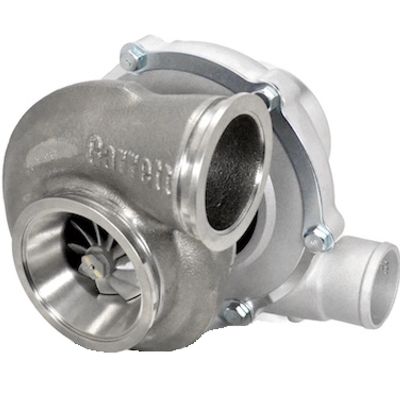

GEN2 Garrett GTX3076R Turbo with .83 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-866
GEN2 Garrett GTX3076R Turbo with .83 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-866
GEN2 Garrett GTX3076R Turbo with .83 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-866
GEN2 Garrett GTX3076R Turbo with .83 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-866
Click image to open expanded view
GEN2 Garrett GTX3076R Turbo with .83 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-866
GEN2 Garrett GTX3076R Turbo with .83 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-866
GEN2 Garrett GTX3076R Turbo with .83 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-866
GEN2 Garrett GTX3076R Turbo with .83 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-866

GEN2 Garrett GTX3076R Turbo with .83 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-866

Price
$2,529.46
Optional Selection::None

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3076R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 750HP!

The Garrett GEN2 GTX3076R fits turbine housings for Garrett GT30 (standard size) and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.


PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly



    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84



    • COMPRESSOR HOUSING OPTIONS:
  • T04E Frame, 4 inch inlet, 2 inch outlet, and machined ported shroud (standard/default option)
  • T04B Frame, 3 inch inlet and 2 inch outlet (Alternate compact option, same layout as GT2860RS/GT2871R)


    TURBINE HOUSING OPTIONS:
  • Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R

    •

    ALTERNATIVE TURBINE HOUSING OPTIONS:


    • T25 Inlet, Stainless Steel, Internally Gated, and 5 Bolt GT28 Outlet. Available in .64 A/R and .82 A/R
    • T3 Inlet and 2.5" V-Band Outlet. Available in .63 or .82 A/R Product Code: ATP-HSG-041
    • T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-037
    • T3 Divided Inlet and 3.0" V-Band Outlet. Available in .82 A/R, 1.06 A/R
    • T4 Inlet and 3.0" GT V-Band Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-045
    • T4 Divided Inlet and 3.0" V-Band Outlet. Available in 1.06 A/R Product Code: ATP-HSG-063
    • TiAL Stainless Steel V-Band Inlet & Outlet. Available in .63 A/R, .82 A/R, 1.06 A/R



    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • V-Band Inlet Flange (for Turbo Manifold): FLS-093
  • V-Band Inlet Clamp: CLA-025
  • V-Band Outlet Flange (for Downpipe): FLS-094
  • V-Band Outlet Clamp: CLA-026
    •



    NOTE: Alternate coolant and oil fittings and flanges are available.



    APPLICATION NOTES:
    * Compatible turbine housing inlet flange (product code: FLS-191)
    * Compatible turbine housing outlet flange - select 81mm centering ring (product code: FLS-105)
    * Compatible turbine housing inlet clamp (product code: CLA-047)
    * Compatible turbine housing outlet clamp (product code: CLA-048)


    COMPRESSOR & TURBINE MAPS:
