Price
$2,415.34
PRODUCT DESCRIPTION:
Garrett GEN2 GTX3076R dual ball bearing turbocharger with a T04E frame (4" inlet and 2" outlet compressor housing) and a .61 A/R Divided (Twin-scroll) V-Band Inlet and GT 3" V-Band outlet turbine housing (Ni-Resist Material). Advanced GEN2 billet compressor wheel capable of 700HP!

The Garrett GEN2 GTX3076R fits turbine housings for Garrett GT30 and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.

PRODUCT FEATURES:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing: T04E Frame (4" Inlet & 2" Outlet) . 60 A/R w/ Gen2 Anti-Surge Shroud
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: .61 A/R Divided (Twin-Scroll) Inlet & GT 3" V-Band Outlet
    •



    INSTALLATION HARDWARE:



  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008

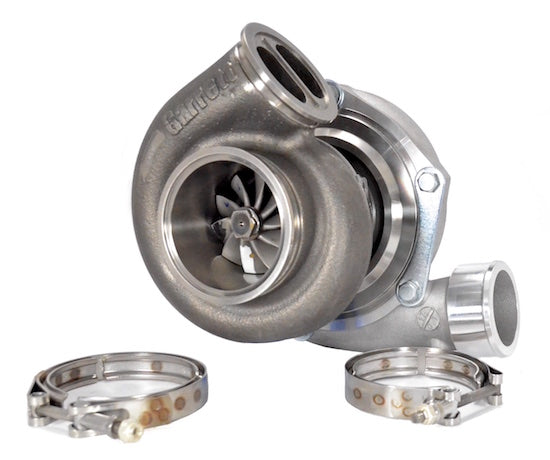

  • V-Band Inlet Clamp: (product code: CLA-047
  • V-Band Outlet Clamp: (product code: CLA-048
  • GT 3" V-Band Outlet Flange (for Downpipe): FLS-246

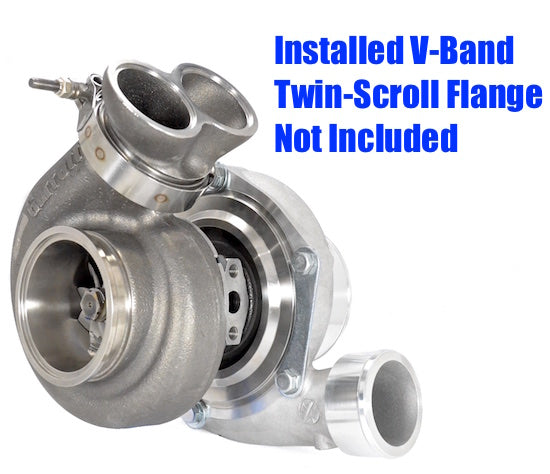

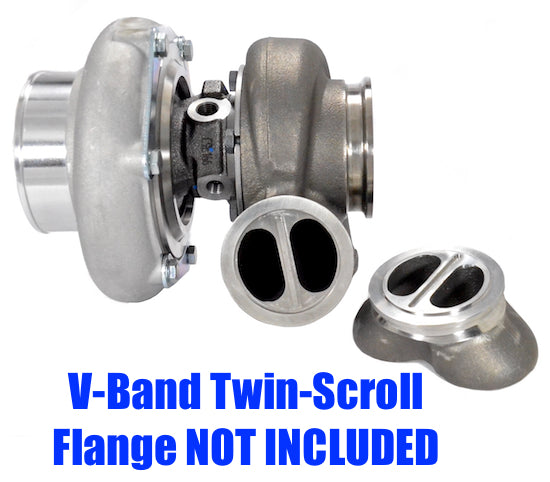

  • Divided V-Band Inlet Flange (for Turbo Manifold): HSG-250

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
