GEN2 Garrett GTX3076R, Compact Comp Hsg, Stainless .64 AR T25 IWG 5 Bolt Turbine Hsg, 1 Bar Actuator GRT-TBO-B34

Price
$2,415.34
Optional Selection::None

PRODUCT DESCRIPTION:

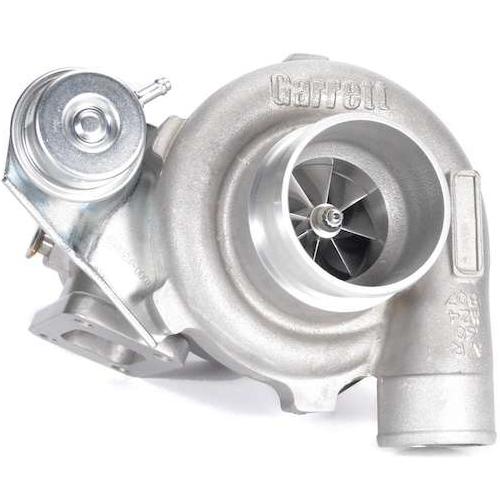

Garrett Gen2 GTX3076R dual ball bearing turbocharger with compact compressor housing & stainless .64 AR T25 IWG 5 bolt turbine housing with a 1 bar actuator. Advanced GEN2 billet compressor wheel capable of 750HP!

The Garrett GEN2 GTX3076R fits turbine housings for Garrett GT30 (standard size) and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.

PRODUCT FEATURES:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
COMPRESSOR HOUSING OPTIONS:
  • T04E Frame, 4 inch inlet, 2 inch outlet, and machined ported shroud (standard/default option)

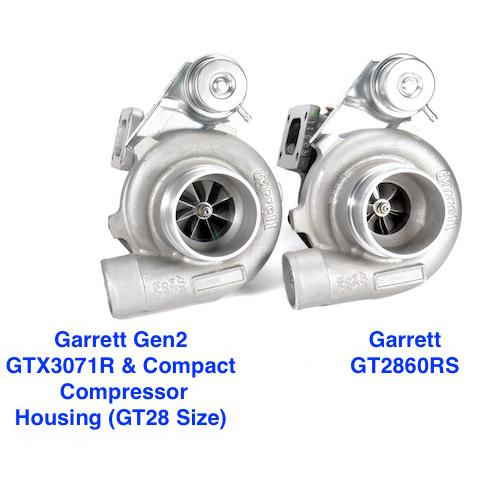

  • T04B Frame, 3 inch inlet and 2 inch outlet (Alternate compact option, same layout as GT2860RS/GT2871R)
TURBINE HOUSING OPTIONS:
  • Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R

ALTERNATIVE TURBINE HOUSING OPTIONS:

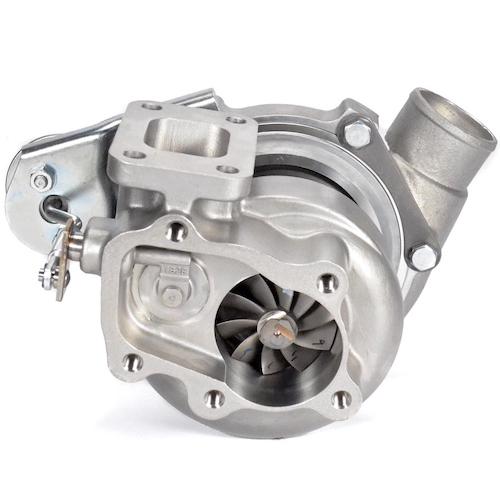

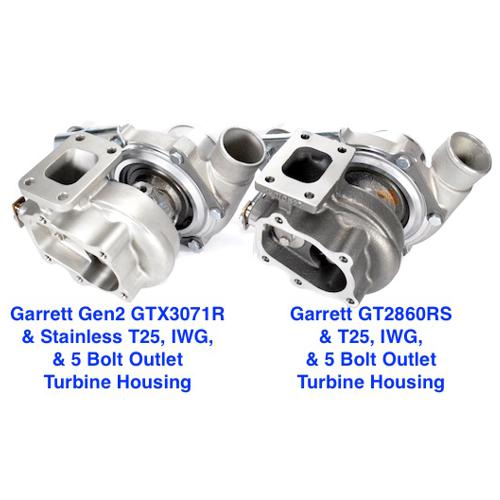

  • T25 Inlet, Stainless Steel, Internally Gated, and 5 Bolt GT28 Outlet. Available in .64 A/R and .82 A/R
  • T3 Inlet and 2.5" V-Band Outlet. Available in .63 or .82 A/R Product Code: ATP-HSG-041
  • T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-037
  • T3 Divided Inlet and 3.0" V-Band Outlet. Available in .82 A/R, 1.06 A/R
  • T4 Inlet and 3.0" GT V-Band Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-045
  • T4 Divided Inlet and 3.0" V-Band Outlet. Available in 1.06 A/R Product Code: ATP-HSG-063
  • TiAL Stainless Steel V-Band Inlet & Outlet. Available in .63 A/R, .82 A/R, 1.06 A/R

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T25 Inlet Flange (For Turbo Manifold): FLS-037
  • T25 Inlet Gasket (For Turbo Manifold): GSK-004
  • 5 Bolt "GT28" Outlet Flange (for Downpipe): FLS-088
  • 5 Bolt "GT28" Outlet Gasket: GSK-016

  •  NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
