GEN2 Garrett GTX3071R w/Compact Comp Hsg &Stainless .64 AR T25 IWG 5 Bolt Turbine GRT-TBO-898Hsg 1 bar Actuator
GEN2 Garrett GTX3071R w/Compact Comp Hsg &Stainless .64 AR T25 IWG 5 Bolt Turbine GRT-TBO-898Hsg 1 bar Actuator
GEN2 Garrett GTX3071R w/Compact Comp Hsg &Stainless .64 AR T25 IWG 5 Bolt Turbine GRT-TBO-898Hsg 1 bar Actuator
GEN2 Garrett GTX3071R w/Compact Comp Hsg &Stainless .64 AR T25 IWG 5 Bolt Turbine GRT-TBO-898Hsg 1 bar Actuator
Click image to open expanded view
GEN2 Garrett GTX3071R w/Compact Comp Hsg &Stainless .64 AR T25 IWG 5 Bolt Turbine GRT-TBO-898Hsg 1 bar Actuator
GEN2 Garrett GTX3071R w/Compact Comp Hsg &Stainless .64 AR T25 IWG 5 Bolt Turbine GRT-TBO-898Hsg 1 bar Actuator
GEN2 Garrett GTX3071R w/Compact Comp Hsg &Stainless .64 AR T25 IWG 5 Bolt Turbine GRT-TBO-898Hsg 1 bar Actuator
GEN2 Garrett GTX3071R w/Compact Comp Hsg &Stainless .64 AR T25 IWG 5 Bolt Turbine GRT-TBO-898Hsg 1 bar Actuator

GEN2 Garrett GTX3071R w/Compact Comp Hsg &Stainless .64 AR T25 IWG 5 Bolt Turbine GRT-TBO-898Hsg 1 bar Actuator

Price
$2,363.73
Optional Selection::None

PRODUCT DESCRIPTION:

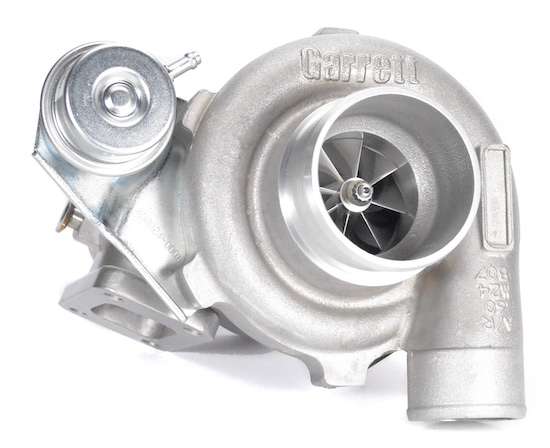

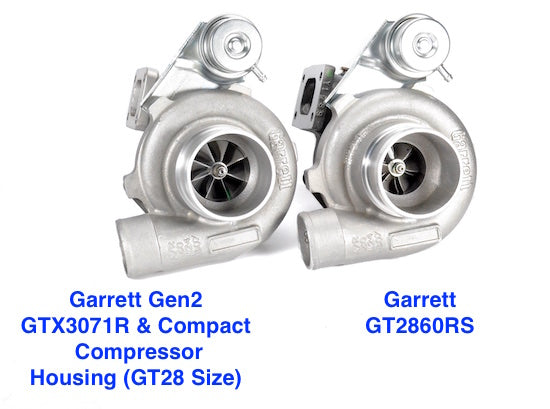

Garrett GEN2 GTX3071R dual ball bearing turbocharger configured as a direct drop-in upgrade for existing setups with a Garrett GT2860RS or GT2871R including T25 Inlet, internally gated, and 5 bolt outlet turbine housing! Advanced GEN2 billet compressor wheel capable of 650HP!

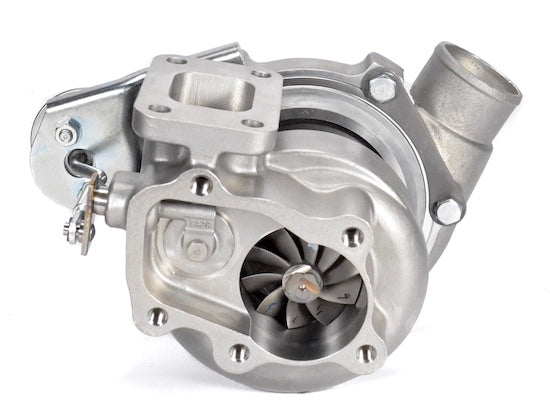

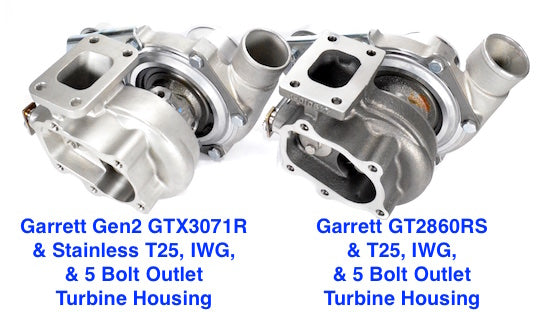

The direct "drop-in" Garrett GEN2 GTX3071R includes a compact GT28 size (T04B frame) compressor housing with a 3" inlet and 2" outlet; a stainless steel .64 A/R T25 Inlet, internally gated, & 5 bolt outlet turbine housing; and a 1 BAR (12-14PSI) wastegate actuator.


PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

    •

    INSTALLATION HARDWARE:



  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T25 Inlet Flange (For Turbo Manifold): FLS-037
  • T25 Inlet Gasket (For Turbo Manifold): GSK-004
  • 5 Bolt "GT28" Outlet Flange (for Downpipe): FLS-088
  • 5 Bolt "GT28" Outlet Gasket: GSK-016

    •

     NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
