GEN2 Garrett GTX3071R Turbo with .86 A/R T25 Internal W/G Turbine Hsg w/GT28 style 5 Bolt Exit, 4" GRT-TBO-888
GEN2 Garrett GTX3071R Turbo with .86 A/R T25 Internal W/G Turbine Hsg w/GT28 style 5 Bolt Exit, 4" GRT-TBO-888
Click image to open expanded view
GEN2 Garrett GTX3071R Turbo with .86 A/R T25 Internal W/G Turbine Hsg w/GT28 style 5 Bolt Exit, 4" GRT-TBO-888
GEN2 Garrett GTX3071R Turbo with .86 A/R T25 Internal W/G Turbine Hsg w/GT28 style 5 Bolt Exit, 4" GRT-TBO-888

GEN2 Garrett GTX3071R Turbo with .86 A/R T25 Internal W/G Turbine Hsg w/GT28 style 5 Bolt Exit, 4" GRT-TBO-888

Price
$2,363.73

PRODUCT DESCRIPTION:

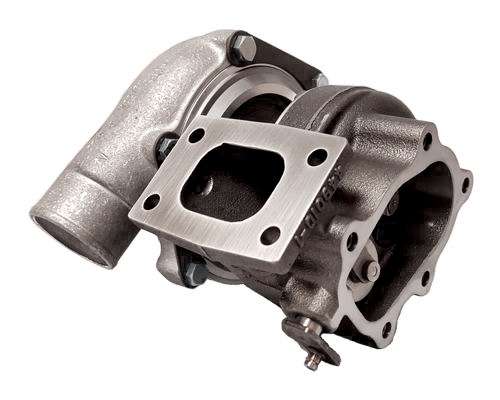

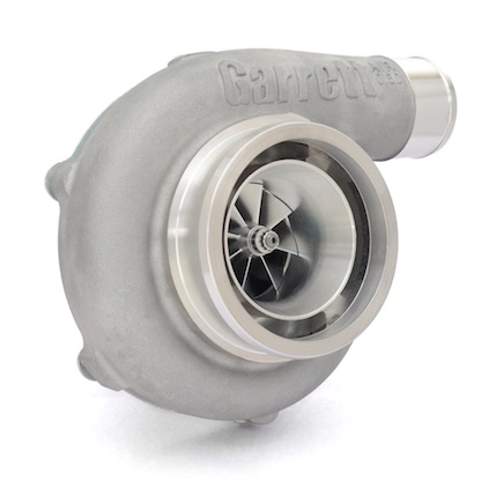

GEN2 - Garrett GTX3071R Turbo in the T04E Frame Comp Housing (4" ported shroud inlet) with .86 A/R T25 Internal W/G Turbine Housing w/ GT28 style 5 Bolt Exit (ATP-HSG-386). This Turbo retains the full size T04E Frame Gen2 GTX3071R Comp Housing. Wastegate actuator and bracket sold separately.

PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

    • INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T25 Inlet Flange (For Turbo Manifold): FLS-037
  • T25 Inlet Gasket (For Turbo Manifold): GSK-004
  • 5 Bolt "GT28" Outlet Flange (for Downpipe): FLS-088
  • 5 Bolt "GT28" Outlet Gasket: GSK-016

    •  NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
