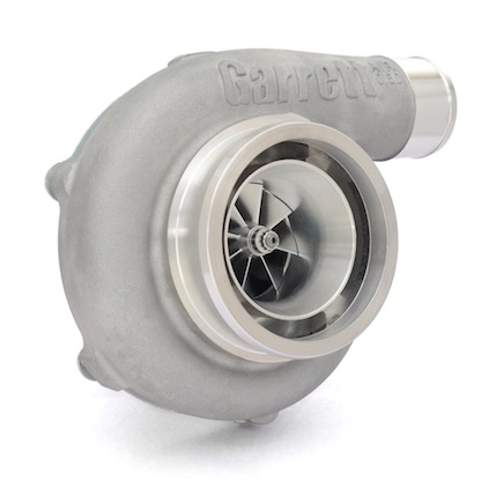

GEN2 Garrett GTX3071R Turbo with .82 A/R T3 Internal W/G Turbine Housing w/ “GT” 5 Bolt Exit GRT-TBO-773

Price
$2,229.09

PRODUCT DESCRIPTION:
Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T3 Inlet, Internal Wastegate Design, and "GT" 5 Bolt Outlet, .82 A/R Turbine Housing (Wastegate actuator and bracket sold separately). Advanced GEN2 billet compressor wheel capable of 650HP!


PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

  •

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031
  •

  • T3 Inlet Flange (for Turbo Manifold): Product Code:FLS-038
  • T3 Inlet Gasket: Product Code:GSK-005
  • 5 Bolt "GT" Outlet Flange (for Downpipe): Product Code:FLS-075
  • 5 Bolt "GT" Outlet Gasket: Product Code:GSK-075
  •

  • Wastegate Actuator "GT28RS Style" 12 to 14PSI: Product Code:WGT-025
  • Actuator Bracket: Product Code:WGT-065
  • Actuator Rod End Clip: Product Code:WGT-035
  • Actuator Rod Extension Kit: Product Code:FTG-032

  •  NOTE: Alternate coolant and oil fittings and flanges and wastegate actuators are available.


    COMPRESSOR & TURBINE MAPS:
