GEN2 Garrett GTX3071R Turbo with .82 A/R Stainless Tial V-band Turbine Housing GRT-TBO-788
GEN2 Garrett GTX3071R Turbo with .82 A/R Stainless Tial V-band Turbine Housing GRT-TBO-788
GEN2 Garrett GTX3071R Turbo with .82 A/R Stainless Tial V-band Turbine Housing GRT-TBO-788
Click image to open expanded view
GEN2 Garrett GTX3071R Turbo with .82 A/R Stainless Tial V-band Turbine Housing GRT-TBO-788
GEN2 Garrett GTX3071R Turbo with .82 A/R Stainless Tial V-band Turbine Housing GRT-TBO-788
GEN2 Garrett GTX3071R Turbo with .82 A/R Stainless Tial V-band Turbine Housing GRT-TBO-788

GEN2 Garrett GTX3071R Turbo with .82 A/R Stainless Tial V-band Turbine Housing GRT-TBO-788

Price
$2,363.73
Select YES for Compact Frame Compressor Housing w/ 3" inlet and 2" outlet :No

PRODUCT DESCRIPTION:

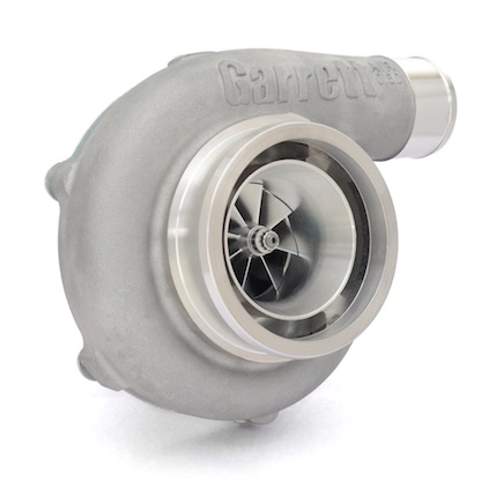

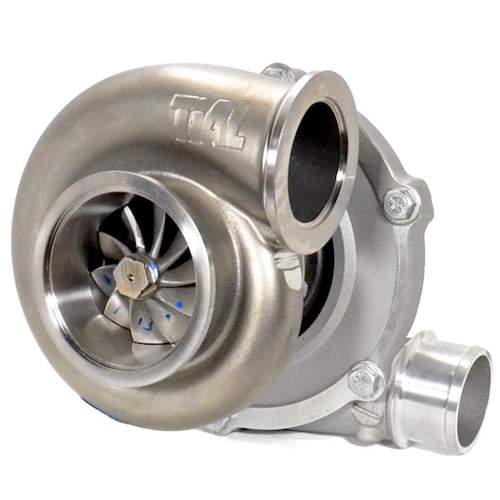

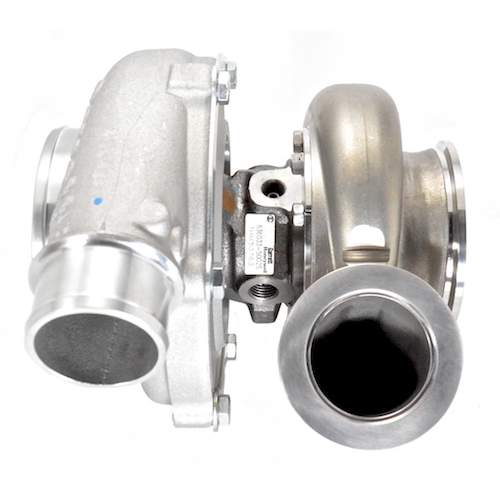

Garrett GEN2 GTX3071R dual ball bearing turbocharger, including Stainless Steel TiAL V-Band Inlet, V-Band Outlet, .82 A/R Turbine Housing. Advanced GEN2 billet compressor wheel capable of 650HP!


PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

    • INSTALLATION HARDWARE:



  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • V-Band Inlet Flange (for Turbo Manifold): FLS-093
  • V-Band Inlet Clamp: CLA-025
  • V-Band Outlet Flange (for Downpipe): FLS-094
  • V-Band Outlet Clamp: CLA-026
    •



    NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:


    ​Order Cancellation:

    Orders can be cancelled for a 5% fee up to 48 hours after the order has been placed. After 48 hours, order cancellations will be subject to a 40% restocking fee.

    We reserve the right to cancel orders at our discretion if we suspect the order is fraudulent. We will attempt to contact you before cancelling.
    Shipping Information

    Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

    **ALL TURBO KITS ARE BUILT TO ORDER** 4-6 WEEK LEAD TIME.

    **ALL FUEL KITS ARE BUILT TO ORDER** 2-3 WEEK LEAD TIME
