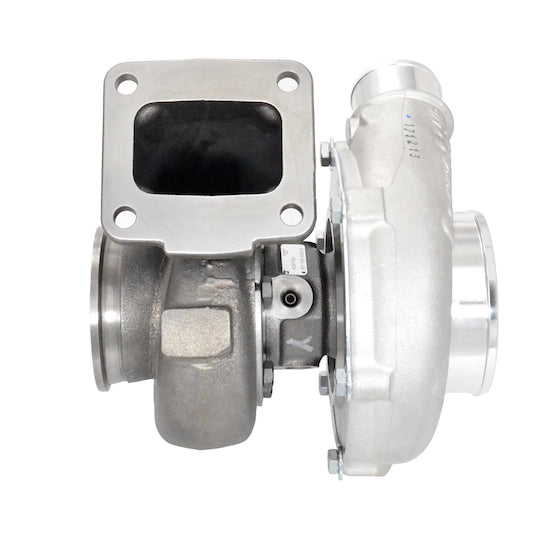

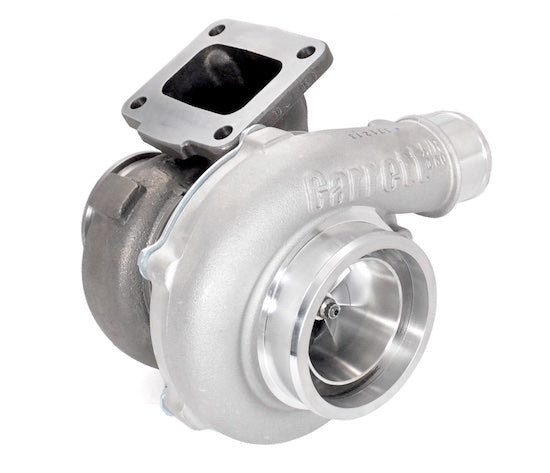

GEN2 Garrett GTX3071R Turbo with .63 A/R T4 Turbine Housing w/3" GT VBAND conical exit w/81mm lip GRT-TBO-775

Price
$2,363.73

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T4 Inlet, 3 Inch "GT" V-Band Conical Outlet (81mm centering ring), .63 A/R Turbine Housing (ATP-HSG-045). Advanced GEN2 billet compressor wheel capable of 650HP!


PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing: T04E Frame, 4" inlet and 2" outlet, Gen2 Anti-Surge Porting
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

  • INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T4 Inlet Flange (for Turbo Manifold): FLS-200
  • T4 Inlet Gasket: GSK-006
  • V-Band "GT" 3 Inch Outlet Flange (for Downpipe): FLS-246
  • V-Band Outlet Clamp: CLA-048
  •


    NOTE: Alternate coolant and oil fittings and flanges are available.



    COMPRESSOR & TURBINE MAPS:
