GEN2 Garrett GTX3071R Turbo w/ Divided .82 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-783

Price
$2,363.73

PRODUCT DESCRIPTION:

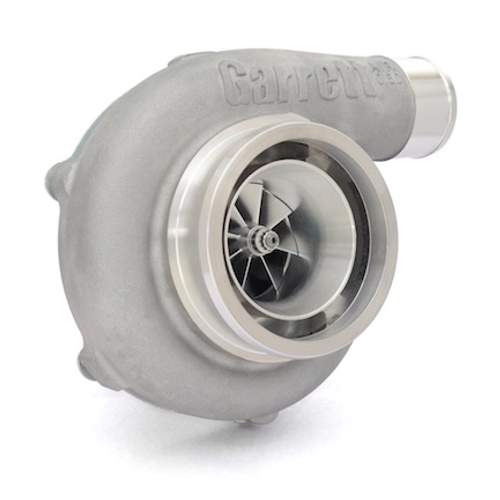

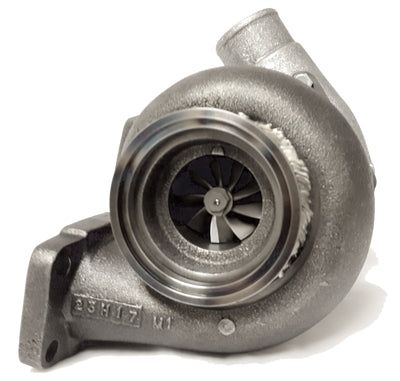

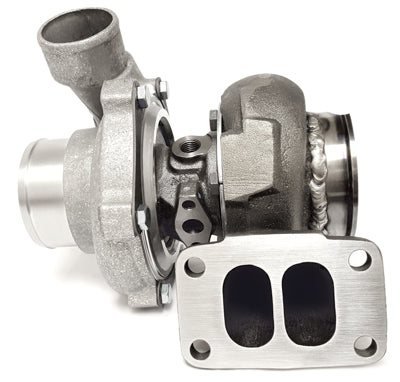

Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T3 Divided Inlet and 3 Inch V-Band Outlet .82 A/R Turbine Housing (ATP-HSG-080). Advanced GEN2 billet compressor wheel capable of 650HP!


PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

  • INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T3 Divided Inlet Flange (for Turbo Manifold): FLS-068
  • T3 Divided Inlet Gasket: GSK-015
  • 3" GT V-band Outlet Flange w/81mm protruded lip (for Downpipe): FLS-246
  • Matching V-Band Outlet Clamp: CLA-048


  • NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
