Garrett Reverse Rotation G25-550 & V-band, w/ Int. Wastegated Turbine Hsg .72 A/R. # 877895-5007S GRT-TBO-K31
Garrett Reverse Rotation G25-550 & V-band, w/ Int. Wastegated Turbine Hsg .72 A/R. # 877895-5007S GRT-TBO-K31
Garrett Reverse Rotation G25-550 & V-band, w/ Int. Wastegated Turbine Hsg .72 A/R. # 877895-5007S GRT-TBO-K31
Click image to open expanded view
Garrett Reverse Rotation G25-550 & V-band, w/ Int. Wastegated Turbine Hsg .72 A/R. # 877895-5007S GRT-TBO-K31
Garrett Reverse Rotation G25-550 & V-band, w/ Int. Wastegated Turbine Hsg .72 A/R. # 877895-5007S GRT-TBO-K31
Garrett Reverse Rotation G25-550 & V-band, w/ Int. Wastegated Turbine Hsg .72 A/R. # 877895-5007S GRT-TBO-K31

Garrett Reverse Rotation G25-550 & V-band, w/ Int. Wastegated Turbine Hsg .72 A/R. # 877895-5007S GRT-TBO-K31

Price
$2,875.41
OPTIONAL Actuator Pressure Selection::1 Bar (Standard/Default)

Product Description:

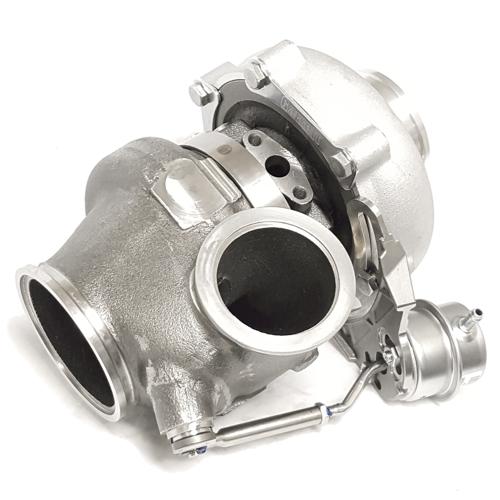

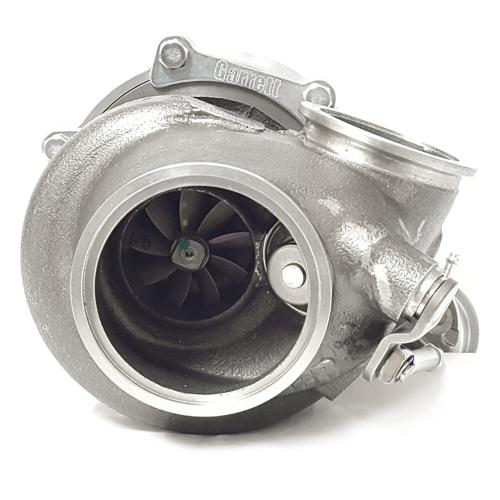

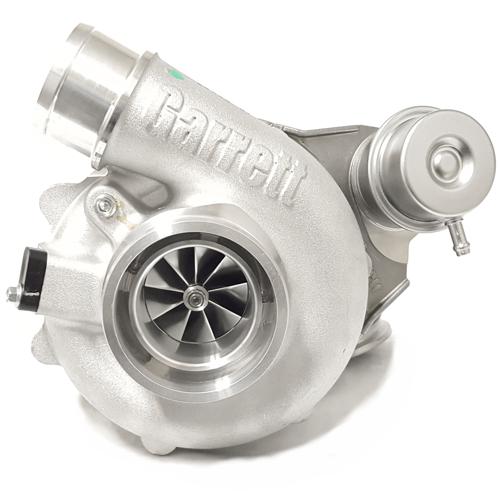

The Garrett G-Series G25-550 advanced small frame ball bearing reverse rotation turbocharger; including a Garrett stainless steel V-Band Inlet, V-Band Outlet, & Internal Wastegate .72 A/R turbine housing (Garrett Part #877895-5007S). 550HP from a small frame package! Reverse Rotation Turbo.

    • Ultra High Flow G-Series Compressor Wheel
    • Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
    • Includes -4AN oil feed fitting and -6AN coolant/water fittings
Product Specifications:
  • Compressor Wheel Inducer: 48mm
  • Compressor Wheel Exducer: 60mm
  • Compressor Wheel Trim: 65
  • Compressor Housing Inlet: 3 Inch Diameter
  • Compressor Housing Outlet: 2 Inch Diameter
  • Compressor Housing A/R: .70
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 49mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN

INSTALLATION HARDWARE:

  • Inlet V-Band Flange (For Turbo Manifold): FLS-350
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032


    • Compressor & Turbine Maps:
