Garrett GTX3584RS (with T4 Turbine Housing) GRT-TBO-595
Garrett GTX3584RS (with T4 Turbine Housing) GRT-TBO-595
Click image to open expanded view
Garrett GTX3584RS (with T4 Turbine Housing) GRT-TBO-595
Garrett GTX3584RS (with T4 Turbine Housing) GRT-TBO-595

Garrett GTX3584RS (with T4 Turbine Housing) GRT-TBO-595

Price
$3,005.78
Select Turbine Housing::T4 Inlet - 3" GT V-Band Outlet & .63 A/R
Select Compressor Housing::4" Inlet - Anti Surge - 2.5" Outlet (Default/Standard)

Product Description:

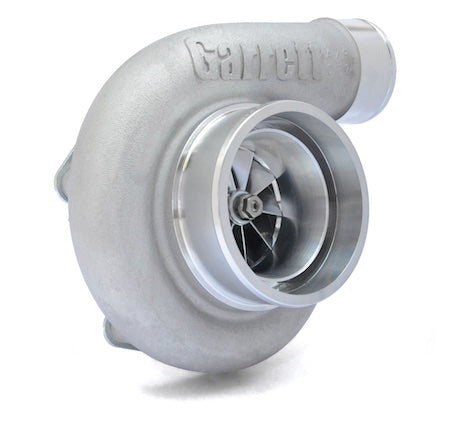

Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and a Garrett T4 Inlet, and 3" GT V-band outlet turbine housing (.63, .82 or 1.06) A/R.

  • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
  • Ultra high flow "RS" blade profile turbine wheel
  • Dual ball bearing CHRA rotating assembly
  • Compact package capable of 1,000HP

** Hose Bead Outlet Compressor Housing.


Product Specifications:

  • Compressor Wheel Inducer: 67mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 inch diameter
  • Compressor Housing Outlet: 2.5 inch diameter
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84

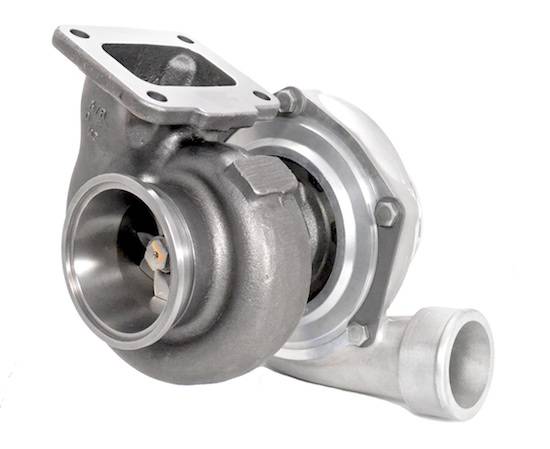

Turbine Housing Specifications:
  • T4 Inlet
  • 3 Inch GT V-Band Outlet (81mm centering ring)
  • .63, .82 or 1.06 A/R

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T4 Inlet Gasket: GSK-006
  • T4 Inlet Flange (for Turbo Manifold): FLS-200
  • 3 Inch V-Band Clamp and 3 inch GT V-Band Flange (81mm centering ring): CLA-024



    • NOTE: Alternate coolant and oil fittings and flanges are available.

    Appliction Notes:

    • The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

    Compressor & Turbine Maps:



    ​Order Cancellation:

    Orders can be cancelled for a 5% fee up to 48 hours after the order has been placed. After 48 hours, order cancellations will be subject to a 40% restocking fee.

    We reserve the right to cancel orders at our discretion if we suspect the order is fraudulent. We will attempt to contact you before cancelling.
    Shipping Information

    Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

    **ALL TURBO KITS ARE BUILT TO ORDER** 4-6 WEEK LEAD TIME.

    **ALL FUEL KITS ARE BUILT TO ORDER** 2-3 WEEK LEAD TIME
