PRODUCT DESCRIPTION:

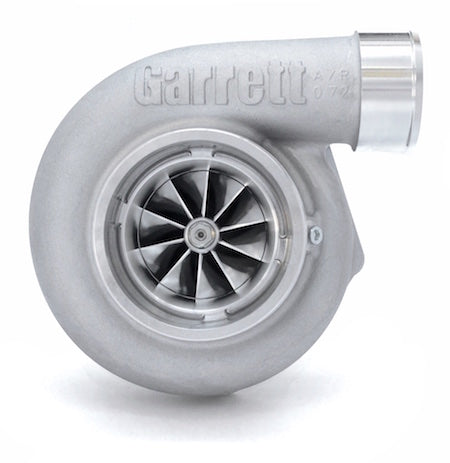

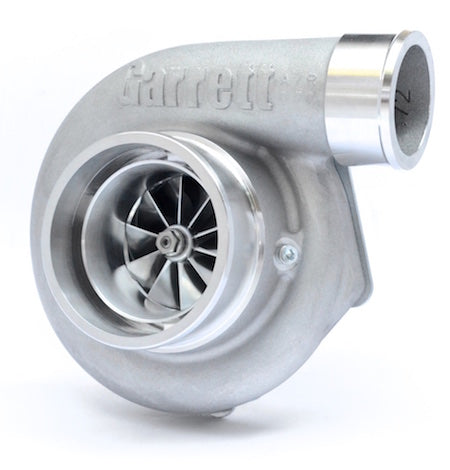

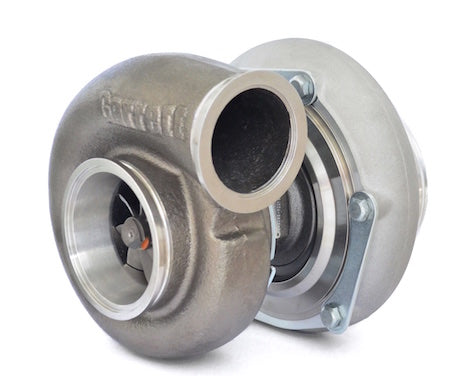

Garrett GTX3584RS dual ball bearing turbocharger with hose bead compressor outlet housing.
The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!
** Hose bead compressor housing outlet version **
PRODUCT FEATURES:
Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
Ultra high flow "RS" blade profile turbine wheel
Dual ball bearing CHRA rotating assembly
Compact package capable of 1,000HP
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 67mm
Compressor Wheel Exducer: 84mm
Compressor Wheel Trim: 64
Compressor Housing A/R: 0.72
Compressor Housing Inlet: 4 inch diameter
Compressor Housing Outlet: 2.5 inch diameter
Turbine Wheel Inducer: 68mm
Turbine Wheel Exducer: 62mm
Turbine Wheel Trim: 84
INSTALLATION HARDWARE:
Coolant - Water Options (*Please call for assistance*)
Oil feed fitting with .035" restrictor: OIL-021
Oil drain flange: FLA-010
Oil drain gasket: GSK-008
8mm x 1.25 (thread pitch) Stud: FST-030
8mm x 1.25 (thread pitch) Locking Head Nut: FST-031
NOTE: Alternate coolant and oil fittings and flanges are available.
TURBINE HOUSING OPTIONS:
Garrett Stainless Steel V-Band Inlet/Outlet .83 A/R: HSG-340
Garrett Stainless Steel V-Band Inlet/Outlet 1.01 A/R: HSG-341
Garrett Stainless Steel V-Band Inlet/Outlet 1.21 A/R: HSG-342
APPLICATION NOTES:
The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.
COMPRESSOR & TURBINE MAPS:
