Garrett GTX3584RS Turbo w/ other Turbine Hsg Options - Vband Flanged Comp. Outlet GRT-TBO-567

Price
$3,005.78
Select Turbine Housing::SS V-Band Inlet & Outlet .83 A/R
Select Compressor Housing::4" Inlet - Anti Surge - V-Band Outlet (Default/Standard)

PRODUCT DESCRIPTION:

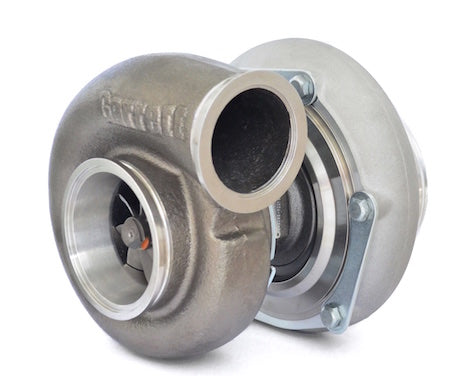

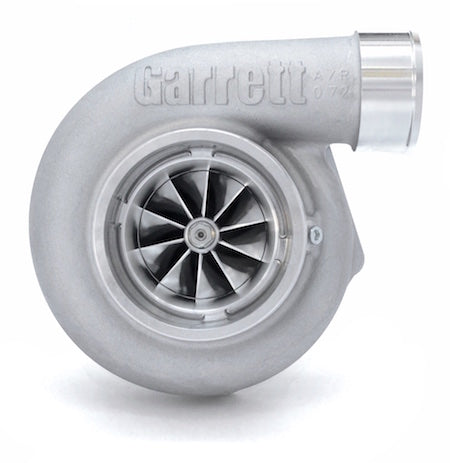

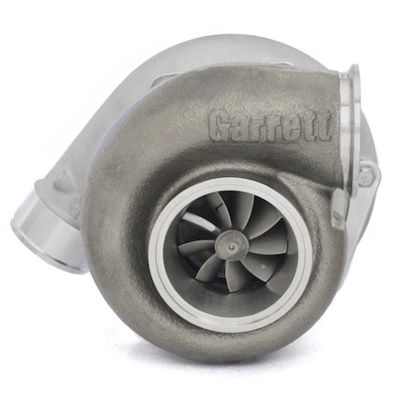

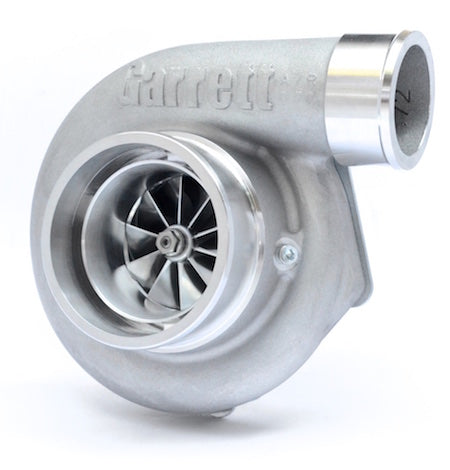

Garrett GTX3584RS dual ball bearing turbocharger with V-band flange compressor outlet housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

** V-band flange compressor housing outlet version **


PRODUCT FEATURES:

  • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
  • Ultra high flow "RS" blade profile turbine wheel
  • Dual ball bearing CHRA rotating assembly
  • Compact package capable of 1,000HP


  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 67mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 inch diameter
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  •

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031
  • Compressor Housing Outlet V-Band Flange (Charge Pipe Side): FLS-240
  • Compressor Housing Outlet V-Band Clamp: CLA-053

  • NOTE: Alternate coolant and oil fittings and flanges are available.

    TURBINE HOUSING OPTIONS:

  • Garrett Stainless Steel V-Band Inlet/Outlet .83 A/R: HSG-340
  • Garrett Stainless Steel V-Band Inlet/Outlet 1.01 A/R: HSG-341
  • Garrett Stainless Steel V-Band Inlet/Outlet 1.21 A/R: HSG-342
  •

     APPLICATION NOTES:

  • The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.


    COMPRESSOR & TURBINE MAPS:
  •
