PRODUCT DESCRIPTION:

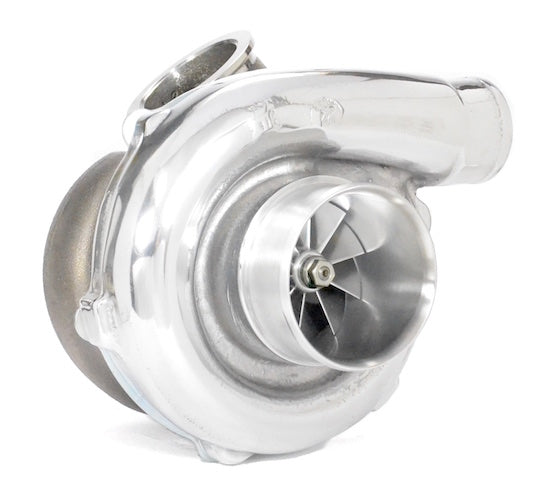

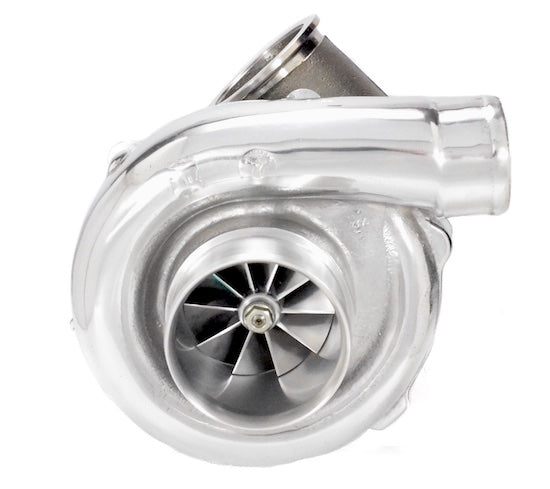

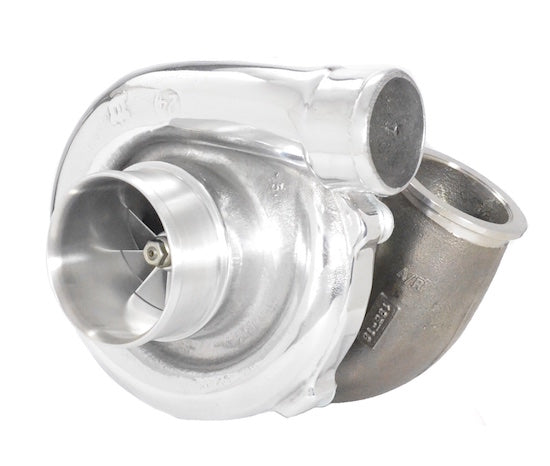

Garrett GTX3584RS dual ball bearing turbocharger with a compact T04E frame (3" inlet & 2" outlet) compressor housing and a 1.21 A/R Garrett stainless steel V-Band inlet and V-Band outlet turbine housing.
The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!
PRODUCT FEATURES:
Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
Ultra high flow "RS" blade profile turbine wheel
Dual ball bearing CHRA rotating assembly
Compact package capable of 1,000HP
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 67mm
Compressor Wheel Exducer: 84mm
Compressor Wheel Trim: 64
Compressor Housing: Compact T04E Frame with a 3" inlet and 2" outlet
Turbine Wheel Inducer: 68mm
Turbine Wheel Exducer: 62mm
Turbine Wheel Trim: 84
Turbine Housing: 1.21 A/R Stainless Steel V-Band Inlet & V-Band Outlet

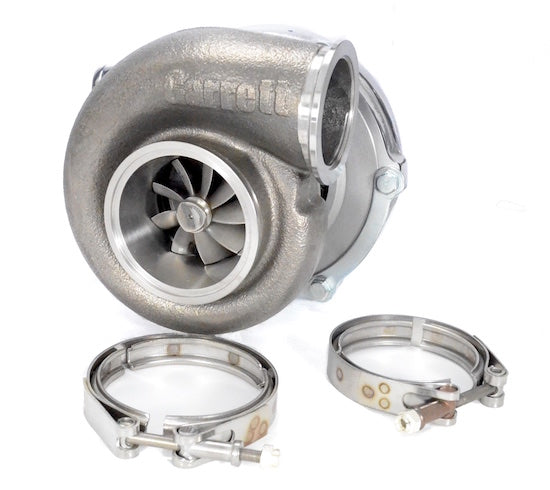

Includes turbine Housing Inlet clamp and outlet clamp (manifold and down-pipe flanges sold separately)
INSTALLATION HARDWARE:
Coolant - Water Options (*Please call for assistance*)
Oil feed fitting with .035" restrictor: OIL-021
Oil drain flange: FLA-010
Oil drain gasket: GSK-008
8mm x 1.25 (thread pitch) Stud: FST-030
8mm x 1.25 (thread pitch) Locking Head Nut: FST-031
V-Band Inlet Clamp: CLA-047
3 Inch GT V-Band Clamp: CLA-048
GT 3" V-Band Outlet Flange (for Downpipe): FLS-246
V-Band Inlet Flange (for Turbo Manifold): FLS-191
NOTE: Alternate coolant and oil fittings and flanges are available.
APPLICATION NOTES:
The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.
