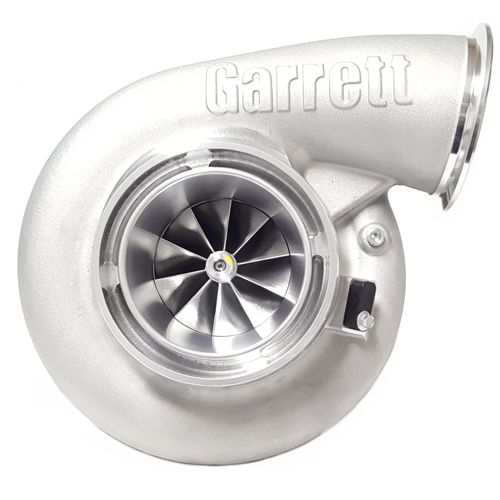

Garrett G47-1850-88MM/120 SUPERCORE ONLY - P/N: 880547-5026S w/ Compressor Housing w/ V-Band Outlet GRT-TBO-R44
Click image to open expanded view

Garrett G47-1850-88MM/120 SUPERCORE ONLY - P/N: 880547-5026S w/ Compressor Housing w/ V-Band Outlet GRT-TBO-R44

Price
$4,263.95

Product Description

Garrett G47-1850-88MM/120 SUPERCORE ONLY - P/N: 880547-5026S w/ Compressor Housing w/ V-Band Outlet

Garrett G47 turbochargers are engineered for extreme horsepower applications. A new high-flowing inconel turbine wheel and a one-piece aluminum center housing are the two major features that differentiate the G47 from its predecessor.

Turbine Stage:

The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 20% more (Compared to GTX Gen II, see graph below). G47 is offered with four stainless steel T6 open turbine housings in .96 A/R, 1.08 A/R, 1.23 A/R and 1.40 A/R.

Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction

Spool:

Up to +9% (estimated by flow, efficiency, and inertia)

Center Housing:

One-piece aluminum center housing reduces supercore weight. The center housing is air Cooled and retains the oil inlet and outlet specifications from previous GTX designs.

Compressor Stage:

Garrett G47 compressor stages are offered in 76mm | 80mm comp inducer | 109mm comp exducer along with 80mm | 88mm comp inducer | 120 comp exducer, with their own horsepower ratings indicated in the model name.

Features:

  • Supports nearly 1850 horsepower with amazing boost response depending on your inducer wheel choice
  • 76mm | 80mm comp inducer | 109mm comp exducer along with 80mm | 88mm comp inducer | 120 comp exducer
  • Spool: up to +9% (estimated by flow, efficiency, and inertia)
  • 20% more turbine flow (compared to GTX) see graph below
  • One-piece aluminum center housing
  • Outline interchangeable with GTX Gen II turbos

INSTALLATION HARDWARE:



  • Oil feed flange: FLA-040
  • Oil feed gasket: GSK-011
  • Oil drain flange: FLA-035
  • Oil drain gasket: GSK-035
    •
  • Compressor Housing Outlet Flange & Clamp Set: FLS-055
  • Speed Sensor Kit: ACS-032

  • V-Band Outlet Flange (for Downpipe): FLS-420
  • V-Band Outlet Clamp: CLA-022

    • NOTE: Alternate oil fittings and flanges are available.

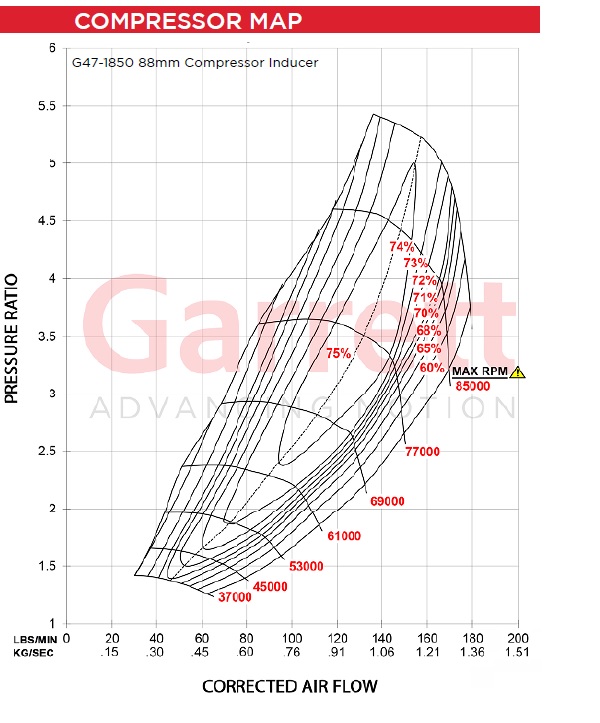

    Compressor & Turbine Maps:

    G47 Models Comparison Chart:
