Garrett G45-1125-67MM SUPERCORE ONLY - P/N: 888169-5003S w/ Compressor Housing w/ V-Band Outlet GRT-TBO-P33
Click image to open expanded view

Garrett G45-1125-67MM SUPERCORE ONLY - P/N: 888169-5003S w/ Compressor Housing w/ V-Band Outlet GRT-TBO-P33

Price
$3,219.36

Product Description:

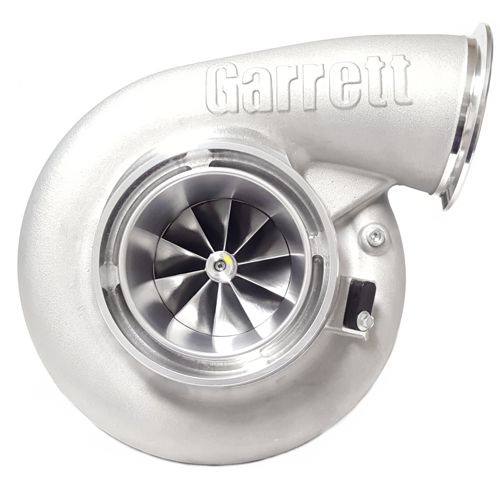

Garrett G-Series G45-1125 (67MM compressor inducer diameter) Supercore only (Turbo W/O turbine housing) capable of 1350HP!

Product Features:

  • Quick spooling, high horsepower solution for 2.0 liter up to 8.0 liter engine platforms
  • G Series compressor aero increases flow up to 24% (compared to GTX4508R)
  • 67mm compressor inducer sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter (please check relevant rulebook)
  • Dual ceramic ball bearing with steel cages
  • G Series turbine aero increases flow 14% (compared to GTX4508R)
  • Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
  • Lightweight aluminum backplate
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
Product Specifications:
  • Compressor Wheel Inducer: 67mm
  • Compressor Wheel Exducer: 102mm
  • Compressor Wheel Trim: 44
  • Compressor Housing A/R: 0.85
  • Turbine Wheel Inducer: 89mm
  • Turbine Wheel Exducer: 82mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Coolant - Water Options (Requires 2 units): *Please call for assistance*
  • Oil feed flange (-4 AN with built-in Restrictor): FLA-040
  • Oil feed gasket: GSK-011
  • Oil drain flange: FLA-009
  • Oil drain gasket: GSK-007

  • V-Band Compressor Outlet Flange/Clamp Set: FLS-055

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:
