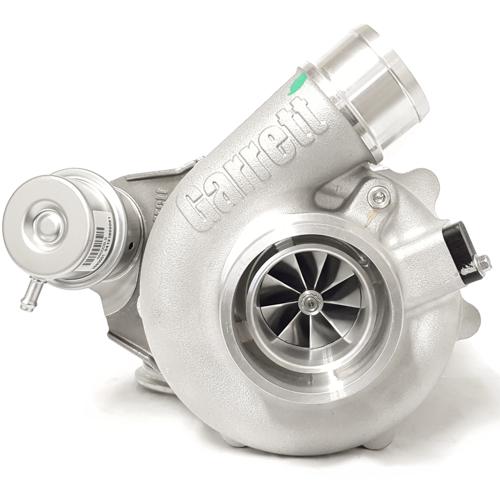

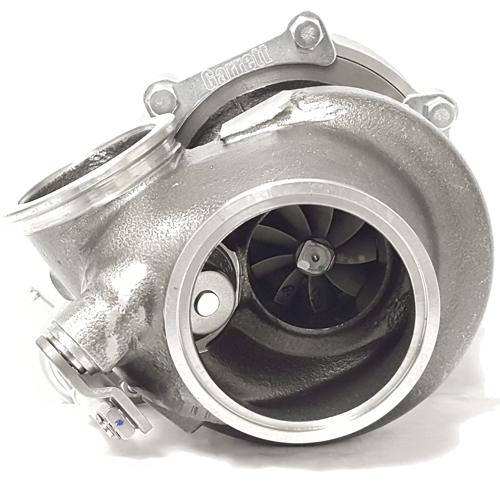

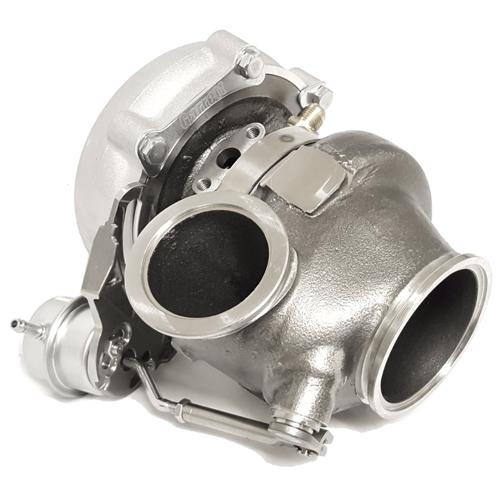

Garrett G25-550 & V-Band, w/ Internally Wastegated Turbine Housing, .72 A/R. # 877895-5003S GRT-TBO-639
Garrett G25-550 & V-Band, w/ Internally Wastegated Turbine Housing, .72 A/R. # 877895-5003S GRT-TBO-639
Garrett G25-550 & V-Band, w/ Internally Wastegated Turbine Housing, .72 A/R. # 877895-5003S GRT-TBO-639
Click image to open expanded view
Garrett G25-550 & V-Band, w/ Internally Wastegated Turbine Housing, .72 A/R. # 877895-5003S GRT-TBO-639
Garrett G25-550 & V-Band, w/ Internally Wastegated Turbine Housing, .72 A/R. # 877895-5003S GRT-TBO-639
Garrett G25-550 & V-Band, w/ Internally Wastegated Turbine Housing, .72 A/R. # 877895-5003S GRT-TBO-639

Garrett G25-550 & V-Band, w/ Internally Wastegated Turbine Housing, .72 A/R. # 877895-5003S GRT-TBO-639

Price
$2,764.82
OPTIONAL Actuator Pressure Selection: :1 bar (Standard/Default)

Product Description:

The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger; including a Garrett stainless steel V-Band Inlet, V-Band Outlet, and Internal Wastegate .72 A/R turbine housing (Garrett Part #877895-5003S). 550HP from a small frame package!

    • Ultra High Flow G-Series Compressor Wheel
    • Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
    • Includes -4AN oil feed fitting and -6AN coolant/water fittings
Product Specifications:
  • Compressor Wheel Inducer: 48mm
  • Compressor Wheel Exducer: 60mm
  • Compressor Wheel Trim: 65
  • Compressor Housing Inlet: 3 Inch Diameter
  • Compressor Housing Outlet: 2 Inch Diameter
  • Compressor Housing A/R: .70
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 49mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN

INSTALLATION HARDWARE:

  • Inlet V-Band Flange (For Turbo Manifold): FLS-350
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

    • Compressor & Turbine Maps:



    ​Order Cancellation:

    Orders can be cancelled for a 5% fee up to 48 hours after the order has been placed. After 48 hours, order cancellations will be subject to a 40% restocking fee.

    We reserve the right to cancel orders at our discretion if we suspect the order is fraudulent. We will attempt to contact you before cancelling.
    Shipping Information

    Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

    **ALL TURBO KITS ARE BUILT TO ORDER** 4-6 WEEK LEAD TIME.

    **ALL FUEL KITS ARE BUILT TO ORDER** 2-3 WEEK LEAD TIME
