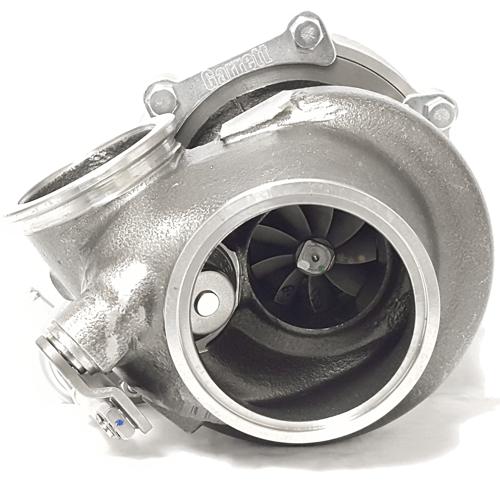

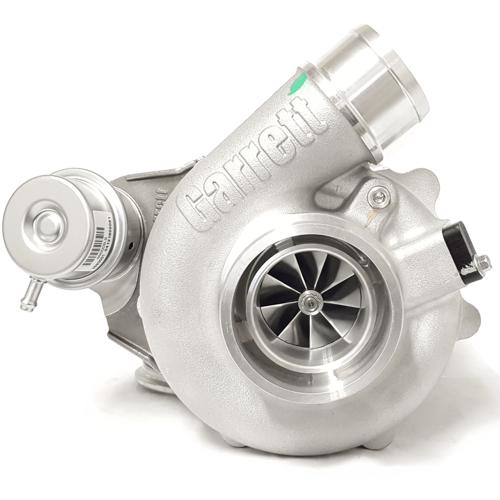

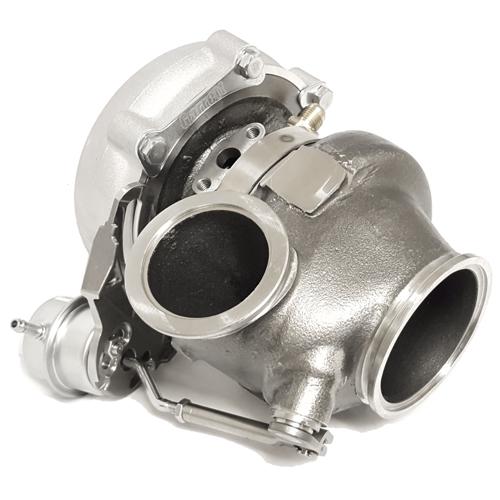

G25-550 .92 A/R T3 inlet V-band outlet turbine housing

In stock



Understanding the Name:

G designates 81 years of Garrett® heritage.

25 classifies the size of the frame. The remaining 3 digits identify the max horsepower rating of the turbocharger. (ie 550)

Horsepower: 300 - 550

Displacement: 1.4L - 3.0L


Product Description:

      The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger; including a Garrett stainless steel V-Band Inlet & V-Band Outlet .92 A/R turbine housing (Garrett Part #871389-5005S). 550HP from a small frame package!
      • Ultra High Flow G-Series Compressor Wheel
      • Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
      • Includes -4AN oil feed fitting and -6AN coolant/water fittings

    Product Specifications:

    • Compressor Wheel Inducer: 48mm
    • Compressor Wheel Exducer: 60mm
    • Compressor Wheel Trim: 65
    • Compressor Housing Inlet: 3 Inch Diameter
    • Compressor Housing Outlet: 2 Inch Diameter
    • Compressor Housing A/R: .70
    • Turbine Wheel Inducer: 54mm
    • Turbine Wheel Exducer: 49mm
    • Turbine Wheel Trim: 84
    • Turbine Housing Inlet: 3 Inch O.D. V-Band
    • Turbine Housing Outlet: 3.55 inch O.D. V-Band
    • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
    • Includes two Coolant Fittings to -6AN
    • 1 Bar wastegate (default)
