Price
$2,377.33





DOES NOT COME WITH FLANGES



PRODUCT DESCRIPTION:

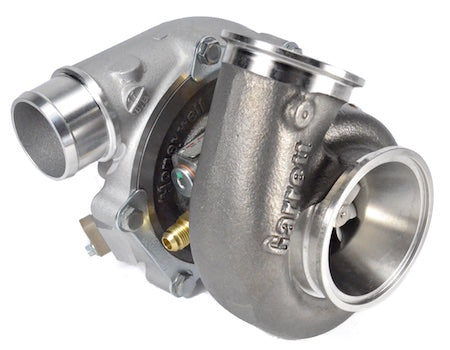

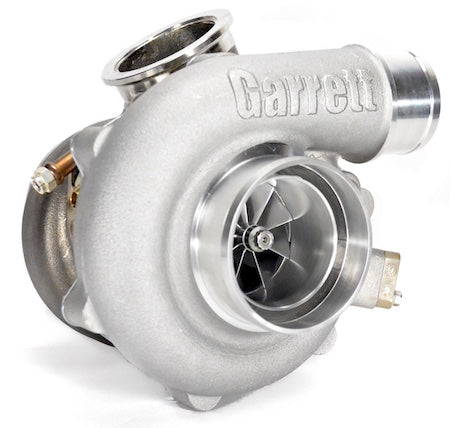

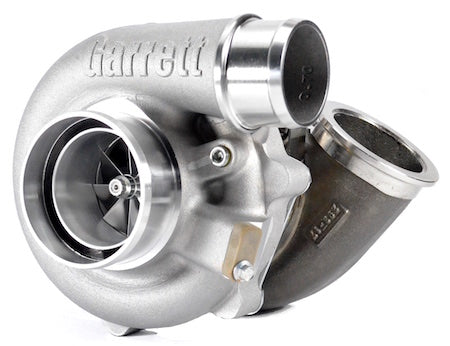

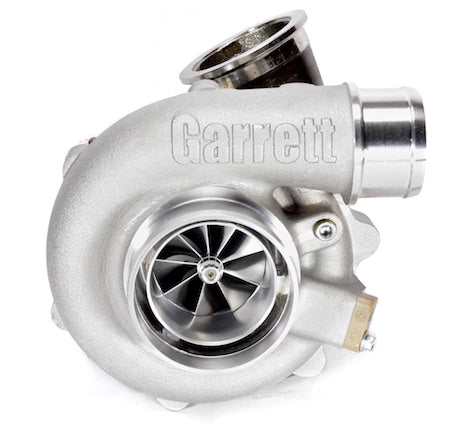

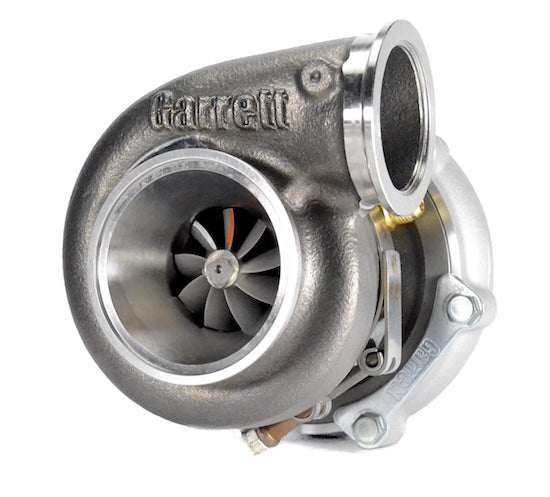

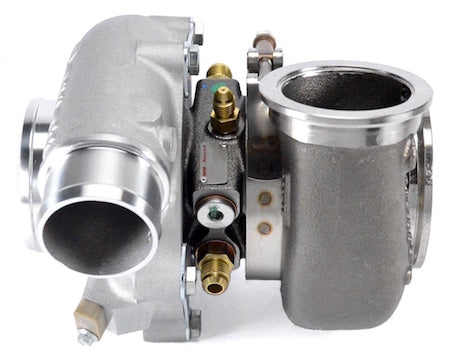

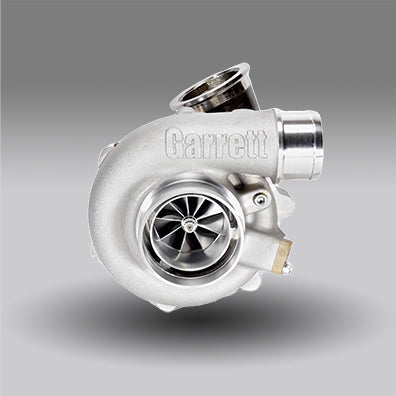

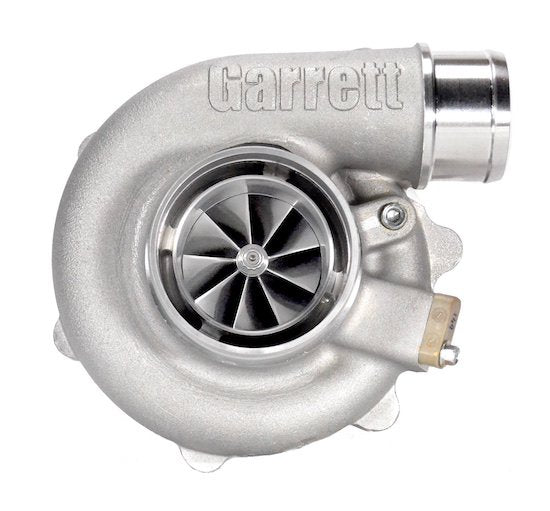

The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger; including a Garrett stainless steel V-Band Inlet & V-Band Outlet .72 A/R turbine housing (Garrett Part #871389-5004S). 550HP from a small frame package!

  • Ultra High Flow G-Series Compressor Wheel
  • Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
  • Includes -4AN oil feed fitting and -6AN coolant/water fittings


    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 48mm
  • Compressor Wheel Exducer: 60mm
  • Compressor Wheel Trim: 54
  • Compressor Housing Inlet: 3 Inch Diameter
  • Compressor Housing Outlet: 2 Inch Diameter
  • Compressor Housing A/R: .70
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 49mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN

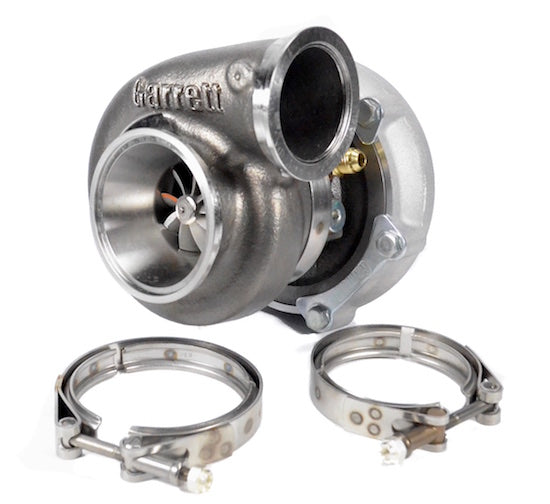

  • Includes Turbine Housing Inlet & Outlet V-Band Clamps


  • INSTALLATION HARDWARE:
  • Inlet V-Band Flange (For Turbo Manifold): FLS-350
  • Inlet V-Band Clamp (For Turbo Manifold): CLA-265
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Out V-Band Clamp (For Down-pipe): CLA-048
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

    •

     Speed Sensor Kit: ACS-032
    Shipping Information

    Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

    **ALL TURBO KITS ARE BUILT TO ORDER** 4-6 WEEK LEAD TIME.

    **ALL FUEL KITS ARE BUILT TO ORDER** 2-3 WEEK LEAD TIME
