Garrett G-Series Supercore, G55-2650 102mm, P/N: 880547-5021S, G55 Turbo W/O turbine housing

Price
$5,759.58

Product Description

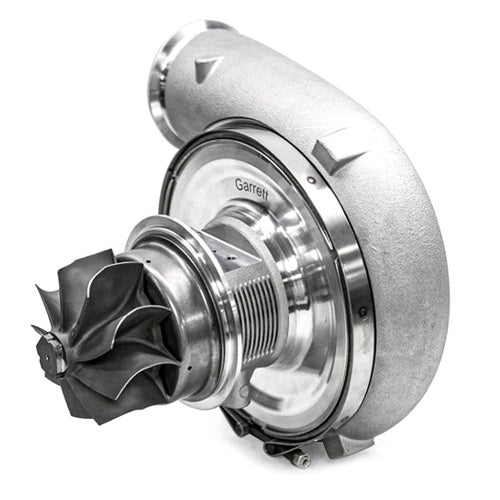

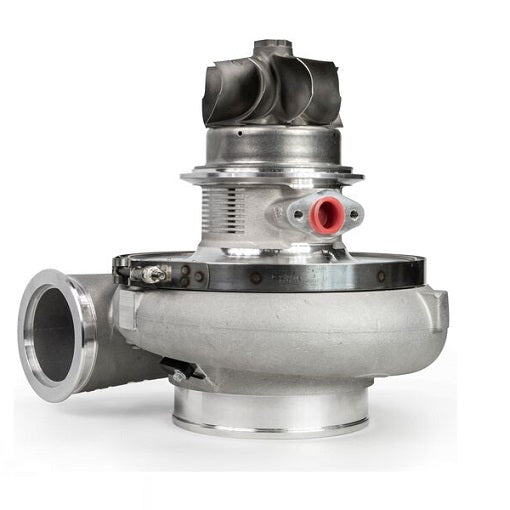

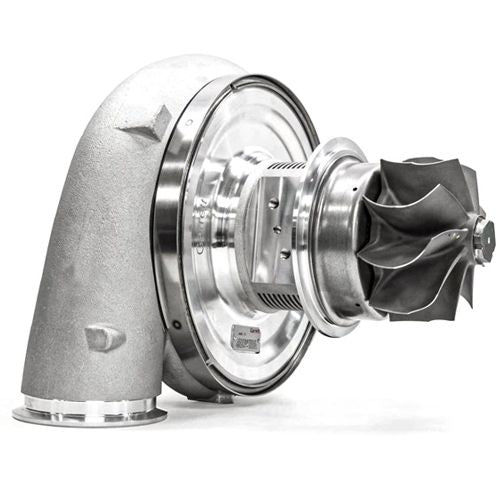

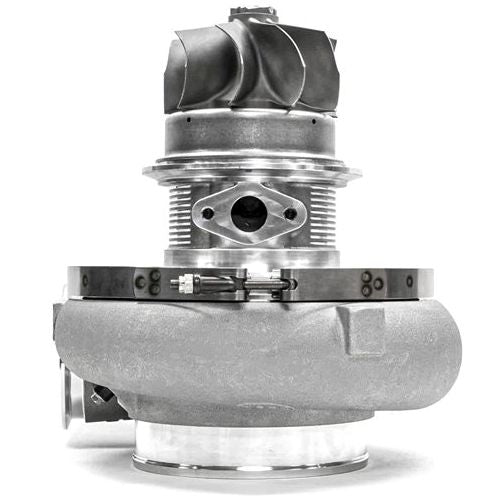

G55-2650 102mm Super Core, G55 Turbo without turbine housing. P/N: 880547-5021S

Garrett G55 turbochargers are engineered for extreme horsepower applications like Radial vs The World and X275 Drag Racing. A new high-flowing inconel turbine wheel and a one-piece aluminum center housing are the two major features that differentiate the G55 from its predecessor.

Turbine Stage:

The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 15% more (Compared to GTX Gen II, see graph below). Larger 106mm turbine exducer (+4mm compared to GTX55). G55 is offered with two stainless steel V-band turbine housings in 1.24 A/R and 1.40 A/R. The open T6 turbine housing is also available in 4 different A/R sizes: 1.00, 1.12, 1.24, and 1.40.

Center Housing:

One-piece aluminum center housing reduces supercore weight. The center housing is air cooled, features a 16mm dual ceramic ball bearing for premium rotor dynamics, and retains the oil inlet and outlet specifications from previous GTX designs.

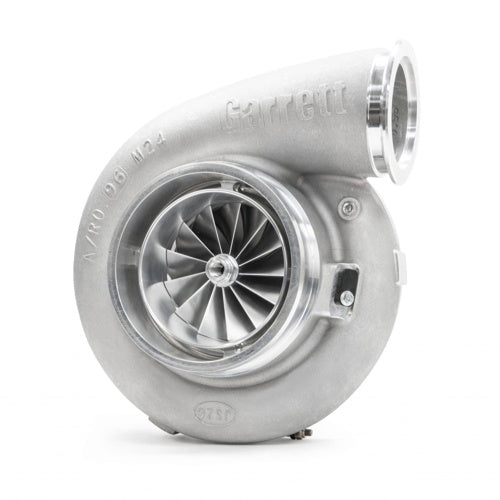

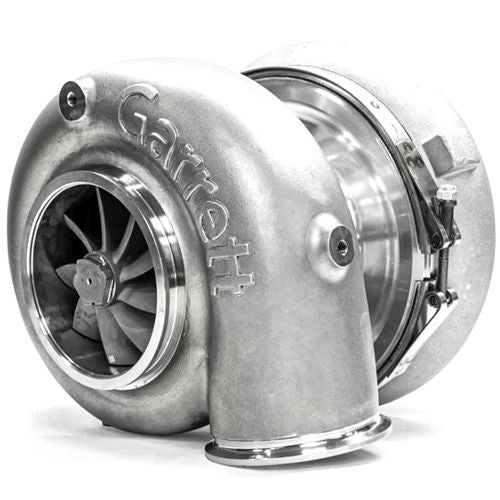

Compressor Stage:

Garrett G55 compressor stages are offered in 85mm, 88mm, 91mm, 94mm, 98mm, 102mm, and 106mm inducer sizes each with their own horsepower ratings indicated in the model name.


Features:

  • Supports nearly 3000 horsepower with amazing boost response
  • 85mm, 88mm, 91mm, 94mm, 98mm, 102mm, 106mm compressor options
  • 106mm turbine exducer (+4mm compared to GTX55)
  • 15% more turbine flow (compared to GTX) see graph below
  • One-piece aluminum center housing
  • 16mm dual ceramic ball bearing cartridge
  • Outline interchangeable with GTX Gen II turbos

INSTALLATION HARDWARE:



  • Oil feed flange: FLA-040
  • Oil feed gasket: GSK-011
  • Oil drain flange: FLA-035
  • Oil drain gasket: GSK-035
  •
  • Compressor Housing Outlet Flange & Clamp Set: FLS-055
  • Speed Sensor Kit: ACS-032

  • V-Band Inlet Flange (for Turbo Manifold): FLS-225
  • V-Band Inlet Clamp: CLA-045
  • V-Band Outlet Flange (for Downpipe): FLS-420
  • V-Band Outlet Clamp: CLA-022

  •

    NOTE: Alternate oil fittings and flanges are available.

    Turbine Map:

    G55 Models Comparison Chart:
