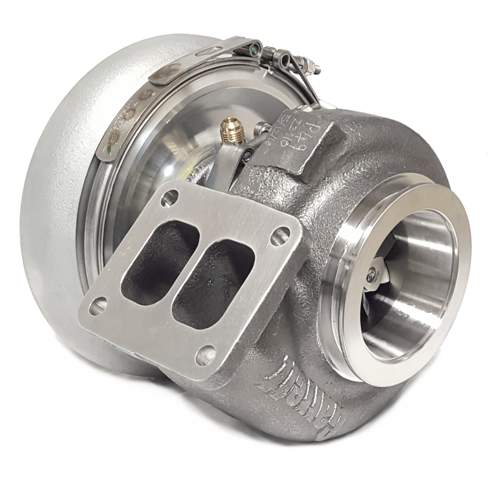

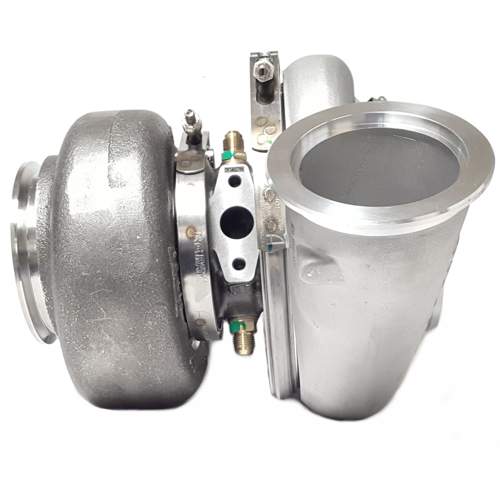

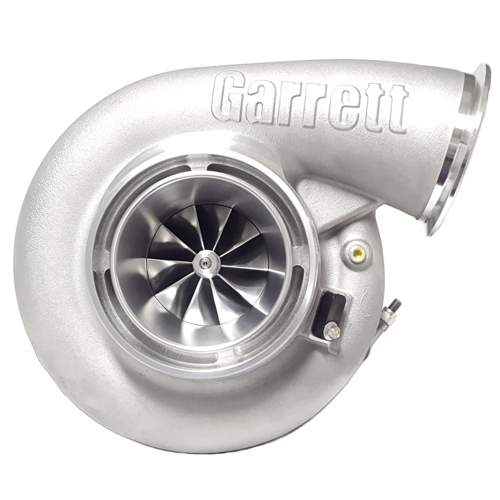

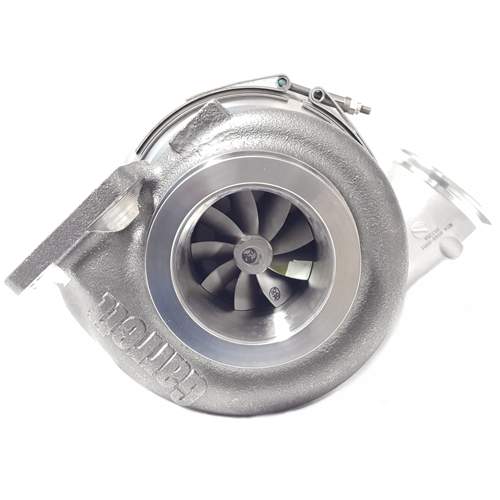

Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing GRT-TBO-P49
Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing GRT-TBO-P49
Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing GRT-TBO-P49
Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing GRT-TBO-P49
Click image to open expanded view
Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing GRT-TBO-P49
Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing GRT-TBO-P49
Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing GRT-TBO-P49
Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing GRT-TBO-P49

Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing GRT-TBO-P49

Price
$4,520.57

Product Description:

Garrett G-Series G45-1500 (76MM compressor inducer diameter) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing capable of 1500HP!

Product Features:

  • Quick spooling, high horsepower solution for 2.0 liter up to 8.0 liter engine platforms
  • G Series compressor aero increases flow up to 24% (compared to GTX4508R)
  • 76mm compressor inducer sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter (please check relevant rulebook)
  • Dual ceramic ball bearing with steel cages
  • G Series turbine aero increases flow 14% (compared to GTX4508R)
  • Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
  • Lightweight aluminum backplate
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
  • Stainless steel turbine housings available in T4 divided inlet
Product Specifications:
  • Compressor Wheel Inducer: 76mm
  • Compressor Wheel Exducer: 109mm
  • Compressor Wheel Trim: 49
  • Compressor Housing A/R: 0.85
  • Turbine Wheel Inducer: 89mm
  • Turbine Wheel Exducer: 82mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Coolant - Water Options (Requires 2 units): *Please call for assistance*
  • Oil feed flange (-4 AN with built-in Restrictor): FLA-040
  • Oil feed gasket: GSK-011
  • Oil drain flange: FLA-009
  • Oil drain gasket: GSK-007

  • V-Band Compressor Outlet Flange/Clamp Set: FLS-055
  • T4 Turbine Inlet Flange, Divided, Stainless: FLS-057 (Mild steel option)
  • Gasket, T4 (T04) Turbine Inlet - DIVIDED: GSK-014
  • V-Band Outlet Flange (for Downpipe): FLS-378
  • V-Band Outlet Clamp: CLA-294

    • NOTE: Alternate coolant and oil fittings and flanges are available.

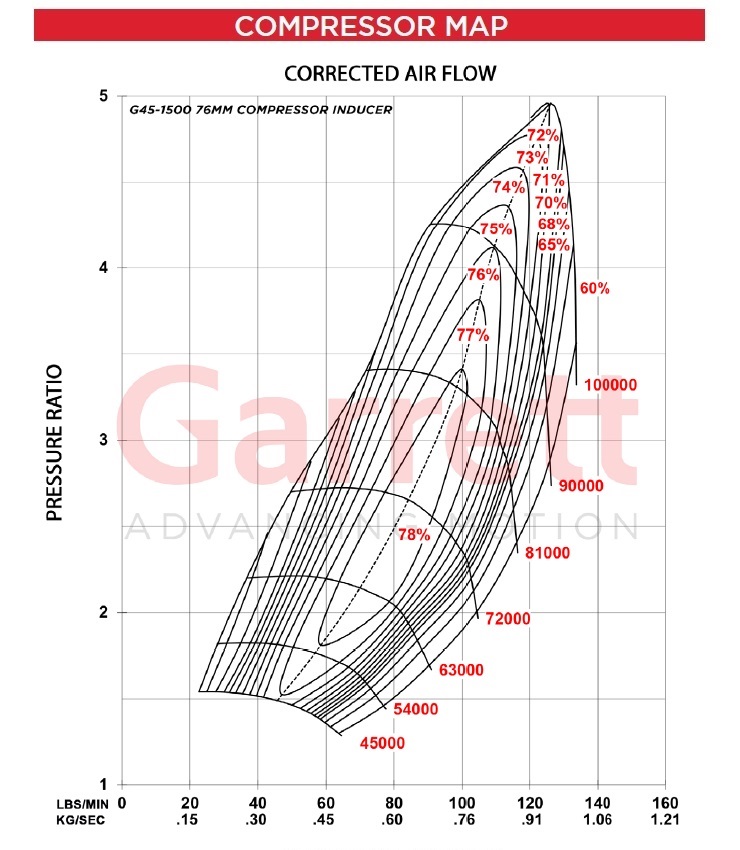

    Compressor & Turbine Maps:
