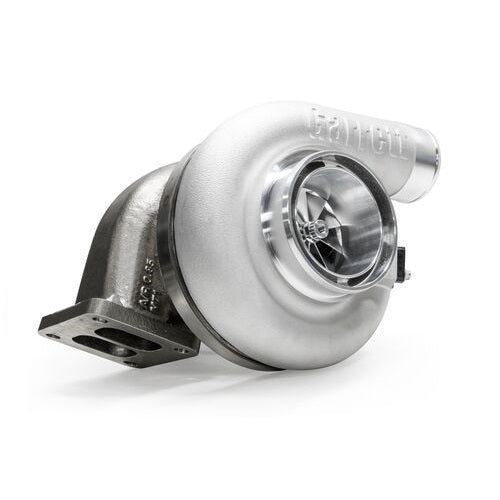

Garrett G-Series G40-1150 (71MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.19 A/R Turbine Housing GRT-TBO-P74

Price
$3,315.73

Product Description:

Garrett G-Series G40-1150 (71mm Comp Wheel) Turbocharger Unit w/ T4 Divided 1.19 A/R Turbine Housing

Product Features:

  • Quick spooling, high horsepower solution for 2.0 liter up to 6.0 liter engine platforms
  • G Series compressor aero increases flow up to 35% (compared to GTX4088R)
  • Dual ceramic ball bearing with steel cages
  • G Series turbine aero increases flow 16% (compared to GTX4088R)
  • Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
  • Lightweight aluminum backplate
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
  • Stainless steel turbine housings available with T4 twin scroll inlet
  • T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models
Product Specifications:
  • Compressor Wheel Inducer: 71mm
  • Compressor Wheel Exducer: 88mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.80
  • Turbine Wheel Inducer: 77mm
  • Turbine Wheel Exducer: 70mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:



  • Coolant - Water Options (Requires 2 units): *Please call for assistance*
  • Oil feed flange (-4 AN with built-in Restrictor): FLA-040
  • Oil feed gasket: GSK-011
  • Oil drain flange: FLA-009
  • Oil drain gasket: GSK-007

  • T4 Turbine Inlet Flange, Divided, Stainless: FLS-057 (Mild steel option)
  • Gasket, T4 (T04) Turbine Inlet - DIVIDED: GSK-014
  • V-Band Outlet Flange (for Downpipe): FLS-378
  • V-Band Outlet Clamp: CLA-294
  •

    NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:
