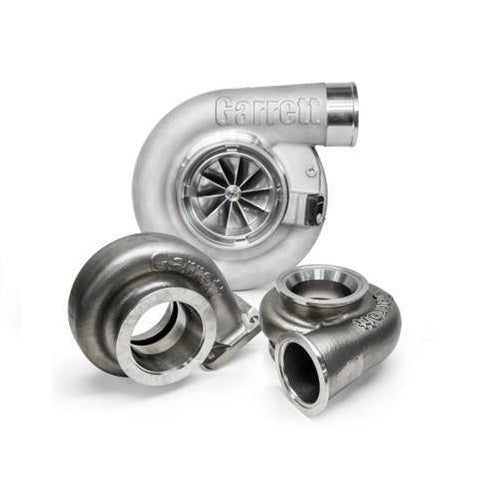

Garrett G-Series G40-1150 (71MM Comp Wheel) Turbocharger Unit w/ .95 A/R V-BAND IN/OUT Turbine Hsg GRT-TBO-P97
Click image to open expanded view

Garrett G-Series G40-1150 (71MM Comp Wheel) Turbocharger Unit w/ .95 A/R V-BAND IN/OUT Turbine Hsg GRT-TBO-P97

Price
$3,315.73

Product Description:

Garrett G-Series G40-1150 (71MM Comp Wheel) Turbocharger Unit w/ .95 A/R V-Band In/Out Turbine Housing

Product Features:

  • Quick spooling, high horsepower solution for 2.0 liter up to 6.0 liter engine platforms
  • G Series compressor aero increases flow up to 32% (compared to GTX4088R)
  • Dual ceramic ball bearing with steel cages
  • G Series turbine aero increases flow 16% (compared to GTX4088R)
  • Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
  • Lightweight aluminum backplate
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
  • Stainless steel turbine housings now available with V-Band inlet
  • V-Band In/Out turbine housing V-Band dimensions are equal to G42 and G45 models
  • High Flow but compact compressor housing design makes for smaller overall footprint
Product Specifications:
  • Compressor Wheel Inducer: 71mm
  • Compressor Wheel Exducer: 88mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.80
  • Turbine Wheel Inducer: 77mm
  • Turbine Wheel Exducer: 70mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:



  • Coolant - Water Options (Requires 2 units): *Please call for assistance*
  • Oil feed flange (-4 AN with built-in Restrictor): FLA-040
  • Oil feed gasket: GSK-011
  • Oil drain flange: FLA-009
  • Oil drain gasket: GSK-007

  • V-Band Inlet Flange (for Turbo Manifold): FLS-379
  • V-Band Inlet Clamp: CLA-291
  • V-Band Outlet Flange (for Downpipe): FLS-380
  • V-Band Outlet Clamp: CLA-292

    • NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:
