Price
$2,589.47

Product Description:

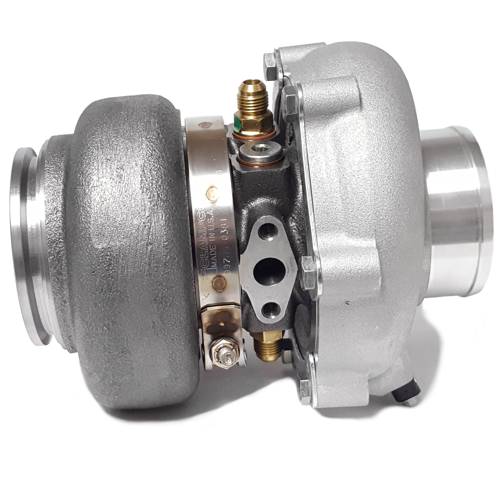

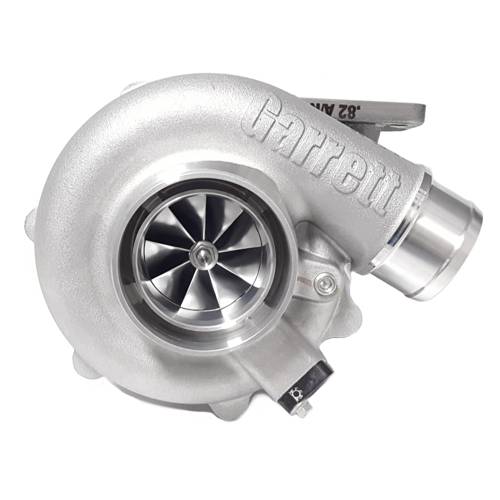

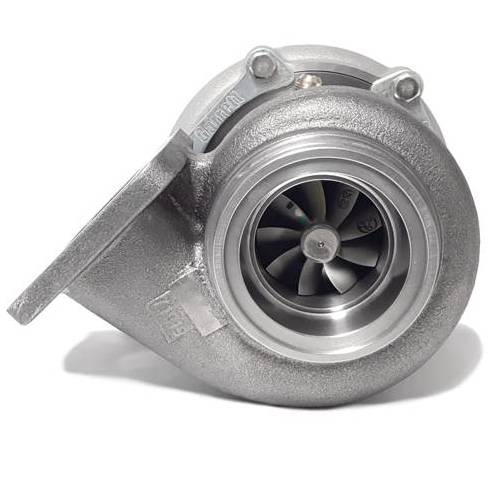

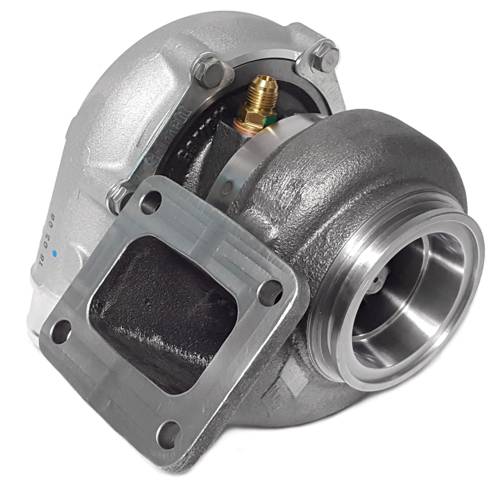

Garrett® G30-660 standard turbo assembly kit with 3" inlet and 2" outlet compressor housing and 0.82 A/R T4 undivided (open) turbine housing with a v-band exit.
Product Features:

  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 67mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.70
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN

Installation Hardware:



  • T4 Inlet Flange (for Turbo Manifold): FLS-200
  • T4 Inlet Gasket: GSK-006
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032


    • Compressor & Turbine Maps:
