Radium Fuel Cell Surge Tank Lift Pump Mounts
- Price
- $0
FCST LIFT PUMP MOUNTS
The mounts below are specific to the following FCSTs ONLY: 20-014X-XX, 20-049X-XX, 20-069X-XX, and 20-099X-XX. NOTE: Lift pump mounting information for the newer FCST-X (20-199X-XX) can be found towards the bottom of this page.

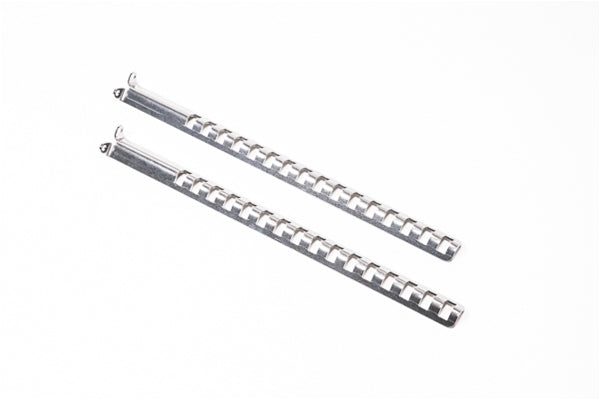

The kits below include 2 laser cut polished stainless steel brackets.
NOTE: The lift pump mounts included with the purchase of a FCST are designed for fuel cells no deeper than 9" (229mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock.
20-1014 FCST LIFT PUMP MOUNTS, MID DEPTH
These lift pump mounts were designed specifically for 14 gallon and 22 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 11.4" (290mm).
However, they permit the FCST lift pump to be mounted into a fuel cell with an internal depth up to 12.7" (323mm).
20-0214 FCST LIFT PUMP MOUNTS, ALL DEPTHS
These lift pump mounts permit an additional 8" (203mm) over the standard mounts provided with the FCST.
They will properly place the lift pump at a fuel cell depth up to 17" (432mm). If modifying to a specific fuel cell depth, simply cut to length using a band saw, cut-off wheel, etc.
NOTE: Longer hose and/or wiring may be necessary.
FCST-X LIFT PUMP MOUNTS
The mounts below are specific to the FCST-X ONLY (20-1990-XX, 20-1991-00, 20-1992-XX, 20-1993-00, 20-1995-00). NOTE: Lift pump mounting information for the older FCST (20-014X-XX, 20-04XX-XX, 20-06XX-XX, and 20-09XX-XX) can be found towards the top of this page.
NOTE: There are 2 sets of lift pump brackets included with the purchase of a FCST-X. The kits below include 2 laser cut polished stainless steel brackets and 2 large locking pump bands.
20-1212 FCST-X LIFT PUMP MOUNTS, SHALLOW DEPTH
These lift pump mounts come standard with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X. They were designed specifically for 39mm OD fuel pumps installed into 6 gallon, 10 gallon, and 10.5 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 7.7" (196mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.
20-1213 FCST-X LIFT PUMP MOUNTS, MID DEPTH
These lift pump mounts come standard with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X. They were designed specifically for 39mm OD fuel pumps installed into 14 gallon, and 22 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 11.4" (290mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.
20-1214 FCST-X LIFT PUMP MOUNTS, ALL DEPTHS
These lift pump mounts do not come standard with any FCST-X. They were designed specifically for 39mm OD fuel pumps. But because these brackets are so long, different diameter pumps can be used. These lift pump mounts permit an additional 4-1/8" (105mm) over the long 20-1213 mounts provided with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X. This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth. If modifying to a specific fuel cell depth, simply cut to length using a band saw, cut-off wheel, etc. NOTE: Longer hose and/or wiring may be necessary.
20-1215 FCST-X LIFT PUMP MOUNTS, SHALLOW-MID DEPTH, BOSCH BR540 OR DW400
These lift pump mounts come standard with the 20-1991-00 FCST-X. They were designed specifically for 46mm OD fuel pumps installed into 6 gallon, 10 gallon, and 10.5 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 7.7" (196mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.
20-1216 FCST-X LIFT PUMP MOUNTS, MID-DEEP DEPTH, BOSCH BR540 OR DW400
These lift pump mounts come standard with the 20-1991-00 FCST-X. They were designed specifically for 46mm OD fuel pumps installed into 14 gallon, and 22 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 11.4" (290mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.
