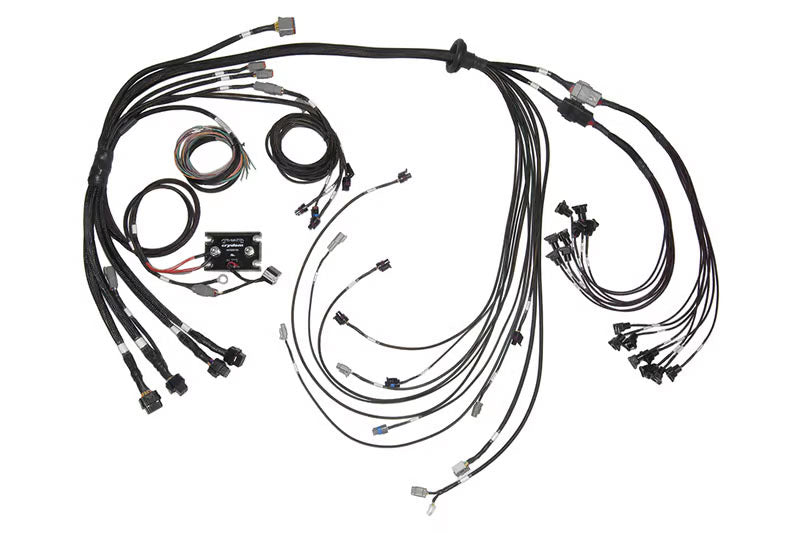

Elite 2500 & REM 16 Inj V8 Small/Big Block GM, Ford & Chrysler Terminated Harness Injector Connector: Bosch EV1
Elite 2500 & REM 16 Inj V8 Small/Big Block GM, Ford & Chrysler Terminated Harness Injector Connector: Bosch EV1
Click image to open expanded view
Elite 2500 & REM 16 Inj V8 Small/Big Block GM, Ford & Chrysler Terminated Harness Injector Connector: Bosch EV1
Elite 2500 & REM 16 Inj V8 Small/Big Block GM, Ford & Chrysler Terminated Harness Injector Connector: Bosch EV1

Elite 2500 & REM 16 Inj V8 Small/Big Block GM, Ford & Chrysler Terminated Harness Injector Connector: Bosch EV1

Price
$1,979

Product Description:

The fastest and most cost effective way to wire your race car or engine conversion! Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours.
  • An efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
  • The quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle.
  • The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
  • This harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle.
  • Fully programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.

Outputs: Up to 16 injectors, 8 ignition and auxillary I/O.

Suits: V8 GM Small/Big Block V8 Ford Small/Big Block Chrysler HEMI

Includes: Elite 2500 & Race Expansion Module (REM) integrated 16 sequential injector terminated engine harness with with 160A SSR, fuse block, firewall grommet and distributor/MSD ready ignition harness, USB programming cable.

Notes: Used for a new fully integrated installation. DBW function not available when used in combination with a REM. 8 individual ignition coil ready when used with optional HT-130306, HT-130311, HT-130312 or HT-130313.

IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.
