Dual Catch Can Kit, Lamborghini Gallardo LP

Sale price
List price
You save
$25 (6%)

Click here to download installation instructions (PDF)


08-13 Lamborghini Gallardo LP550-2 (all trims)
08-13 Lamborghini Gallardo LP560-4 (all trims)
08-13 Lamborghini Gallardo LP570-4 (all trims)

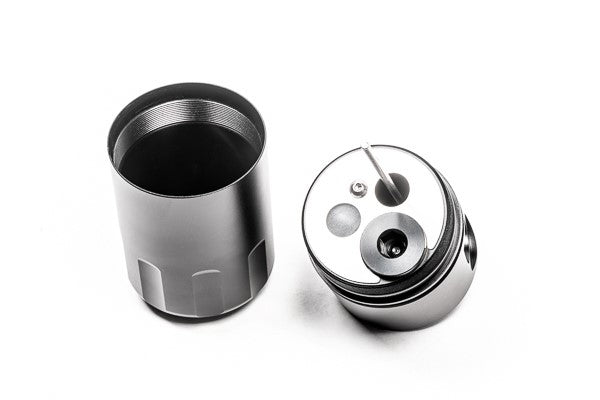

Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick. These kits mount using factory holes and integrate perfectly with the surrounding components. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The built-in dipsticks allow easy inspection of accumulated fluid. No cutting, drilling or permanent modifications are required.

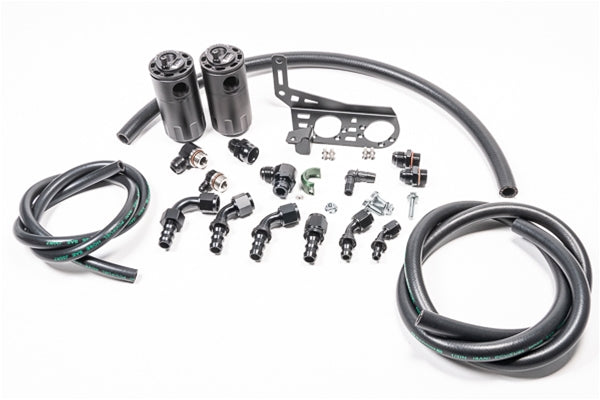

The Radium Engineering catch can kit consists of a PCV and a CCV catch can. The bracket secures to the LH deck lid mount against the firewall.

The PCV catch can runs inline between the PCV valve and the intake manifold. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hose will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. NOTE: No inline check valve is required since Radium catch cans are pressure sealed. This means a direct intake manifold connection is permitted.

The CCV catch can runs inline between the crankcase vent (CCV) and the intake pipe. At low loads, it experiences atmospheric pressure. However, when the engine is at high load (WOT), the line will experience high flow from the crankcase into the intake system. This would normally lead to oil and sludge accumulation in the air filter intake pipe. The CCV catch can captures this and promotes clean filtered air back into the intake. NOTE: for turbocharged engines, there is enough hose to route the catch can outlet to the turbo inlet pipe.

For more information on Radium Engineering catch cans, CLICK HERE.

-Baffled oil catch can (x2)
-Gallardo specific mounting bracket
-AN adapter fittings and hose ends
-Stainless steel hardware
-Radium rubber hose
