18-0015

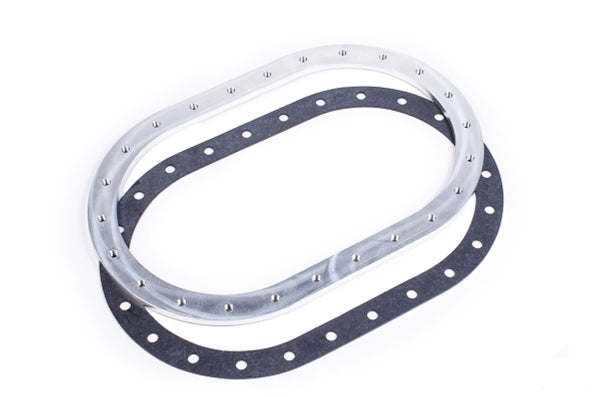

Radium Engineering gasket for "industry standard" 6x10 inch (24-bolt) fuel cells. Unlike others constructed from cork or paper, this seal is die cut from a premium quality variation of FKM.
The Radium gasket is 1/16" thick and reuseable. Compatible with the Radium Fuel Cell Surge Tank.
20-0278
Fuel cell 6x10 inch, 24-bolt weld flange. CNC machined from 6061 billet aluminum and flycut to 0.24" thickness. Includes gasket.
Ideal for welding to an aluminum tank. Welding must be performed by an experienced welder who can prevent warping of the flange.
Holes are tapped for 1/4"-28 fasteners. Great for custom fuel cells. Compatible with the Radium Fuel Cell Surge Tank.
14-0584
This nut ring is manufactured from 6061 aluminum and is anodized to permit all fuel types and to prevent corrosion. All threaded holes are tapped for 1/4"-28 using the industry standard 6x10 pattern. It was designed to bolt into Radium RA-series fuel cells but can work with others. Gasket not included.
Radium Engineering gasket for "industry standard" 6x10 inch (24-bolt) fuel cells. Unlike others constructed from cork or paper, this seal is die cut from a premium quality variation of FKM.
The Radium gasket is 1/16" thick and reuseable. Compatible with the Radium Fuel Cell Surge Tank.
20-0278
Fuel cell 6x10 inch, 24-bolt weld flange. CNC machined from 6061 billet aluminum and flycut to 0.24" thickness. Includes gasket.
Ideal for welding to an aluminum tank. Welding must be performed by an experienced welder who can prevent warping of the flange.
Holes are tapped for 1/4"-28 fasteners. Great for custom fuel cells. Compatible with the Radium Fuel Cell Surge Tank.
14-0584
This nut ring is manufactured from 6061 aluminum and is anodized to permit all fuel types and to prevent corrosion. All threaded holes are tapped for 1/4"-28 using the industry standard 6x10 pattern. It was designed to bolt into Radium RA-series fuel cells but can work with others. Gasket not included.
